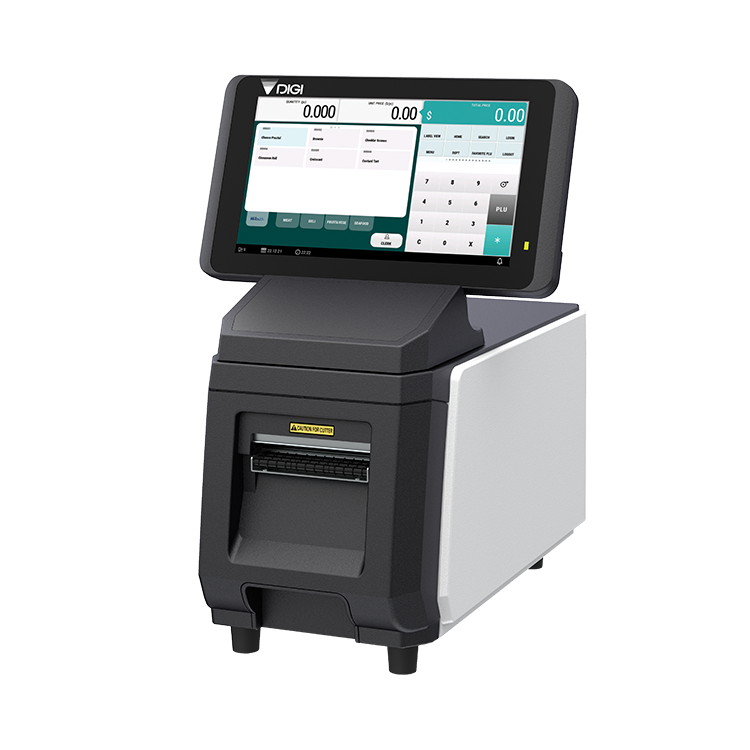

dps5000eplus_WP02_01

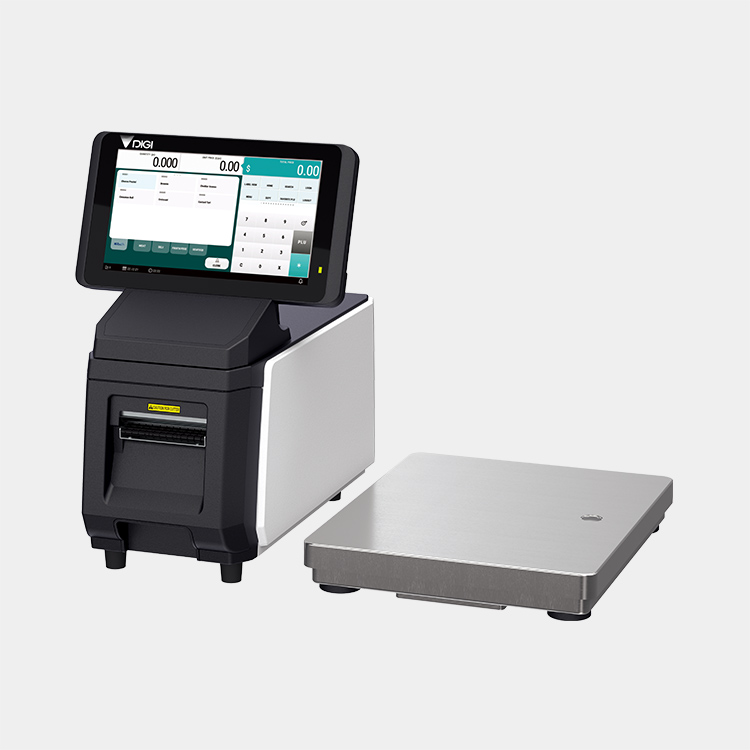

Versatile and Compact Prepack Printer Solution

DP-5000e Plus

零售业

主要功能

The DP-5000e Plus PC-based Prepack Label Printer offers a space-saving and versatile solution. Boasting high-speed performance, it streamlines prepacking operations, ensuring exceptional efficiency without compromising on workspace.

  • Enhance efficiency with the Auto Linerless Dispenser Kit, streamlining workflow for continuous label printing
  • Accommodate a wide range of packing needs
  • Small Footprint
  • Compatible With DIGI ESL & POS

dps5000eplus_WP04_01

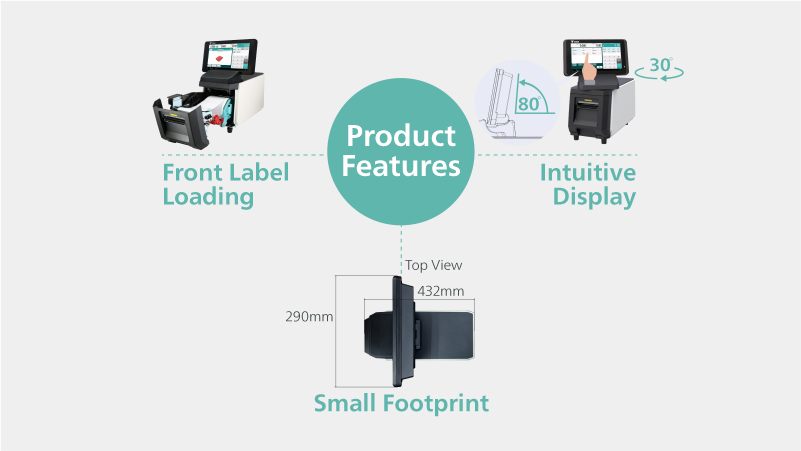

Product Highlights

Front Label Loading
The DP-5000e Plus features a front-loading mechanism for easy label roll replacement, ensuring uninterrupted operation and enhancing overall productivity.

Intuitive Display
The 10.1" Capacitive touch screen can be adjusted easily to offer eye-catching details at optimal viewing comfort. The ergonomic user interface comes with a customisable screen layout that further enhances the operation process.

Small Footprint
With a space-efficient design and a small footprint, the compact Prepack Label Printer can be easily adapted to different workspaces and small operations settings.



 dps5000eplus_WP04_02

Accommodate Wide Range Of Packing Needs

This solution comes with a feature-packed application to cater to diverse industry packing needs and requirements.

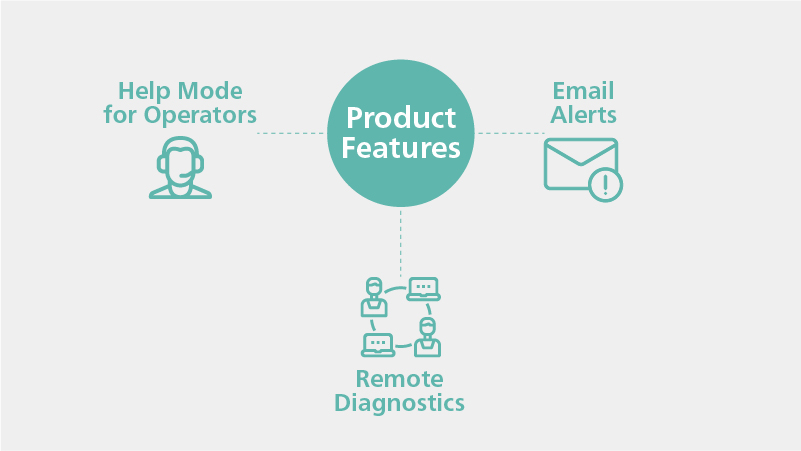

Additionally, the DP-5000e Plus includes notable features such as remote diagnostics, email alerts and an operator help mode for enhanced monitoring and support management.

dps5000eplus_WP04_03

Fast And Sustainable Printing with Linerless

Designed to excel in both speed and performance, the DP-5000e Plus achieves rapid printing at up to 150mm/second with linerless auto-cutter technology.

This capability enables retailers to create flexible label designs of variable lengths, promoting ecological savings in label consumption while delivering crisp and appealing readability with 300dpi resolution.

dps5000eplus_WP04_04

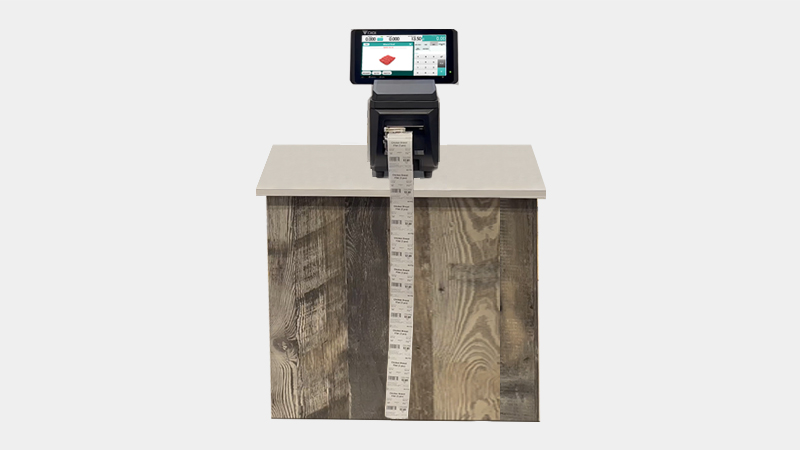

Auto Linerless Dispenser Kit

Boost productivity using the Auto Linerless Dispenser Kit to facilitate uninterrupted label printing in a high-volume packing environment.

dps5000eplus_WP04_05

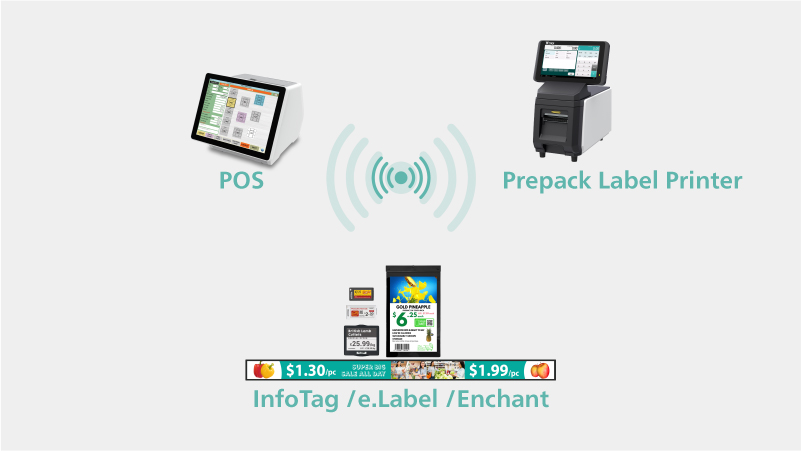

Compatible With DIGI ESL & POS

Retailers currently in operation have the opportunity to effortlessly integrate the Prepack Label Printer with DIGI's ESL or POS solutions. This provides an affordable way for retailers already utilising DIGI's solutions to incorporate the technology into their stores seamlessly, eliminating the need for costly remodeling.

ESL Solution
Replace paper labels with our e.Label, InfoTag or Enchant while enjoying dynamic pricing that is always in sync with the scale solution.

DIGI POS Integration
DIGI's POS system and Prepack Label Printer can be updated with new PLU information simultaneously by connecting to the same network, saving you valuable time to serve your customers better.

技术参数

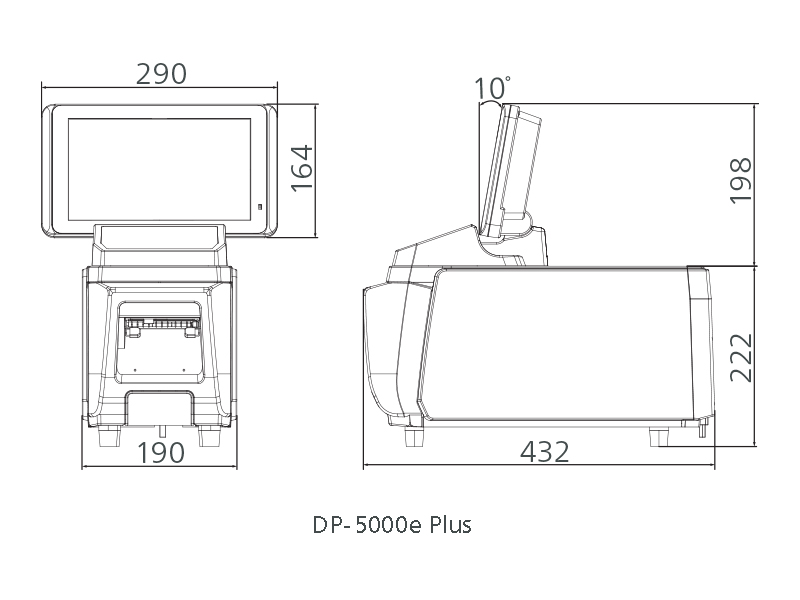

外形尺寸

  • dp5000ePlus_WP05_01
Model DP-5000e Plus
Dimension W x D x H (mm) DP-5000e Plus 290 x 432 x 420
Operator Display 10.1" TFT WSVGA with Capacitive Touch
  Display Size W x D (Pixels) 1024 x 600
Display Rotatable Degree + / - 30 degree left and right ; 80 degree up and down
Label / Receipt Types Liner Linerless with Auto-Cutter
Roll Diameter Max 125mm Max 125mm
Roll Width Max 80mm Max 80mm
Print Width Max 80mm Max 80mm
Printing Speed Max 150mm / second* Max 150mm / second*
Print Resolution 300 dpi 300 dpi
Barcode Type Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, RSS, PDF417 (For Receipt Only), GS1, QR Code, Datamatrix
Power Source AC 100V / 220V (Compliance to 80PLUS Power Saving**)
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH Non-Condensation
Standard Interface 1 x RJ45 (Ethernet 10Base-T / 100Base-T),
4 x USB 2.0,
1 x SD Socket
Net Weight DP-5000e Plus 12 kg
*To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
** 100-120Vac Gold (North America, Canada and Japan)
     210-240Vac Silver (European, UK and most of Asia)


可选项

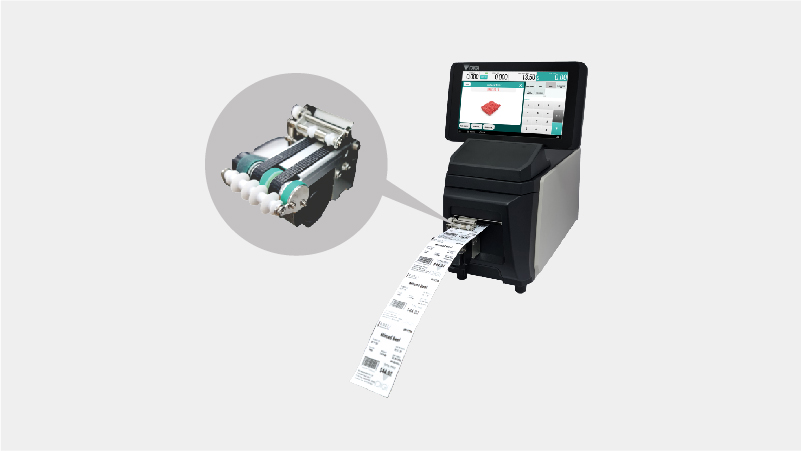

dp5000ePlus_WP09_01

Auto Linerless Dispenser Kit

Facilitate uninterrupted label printing for optimal efficiency in high-volume packing operations.
dp5000ePlus_WP09_02

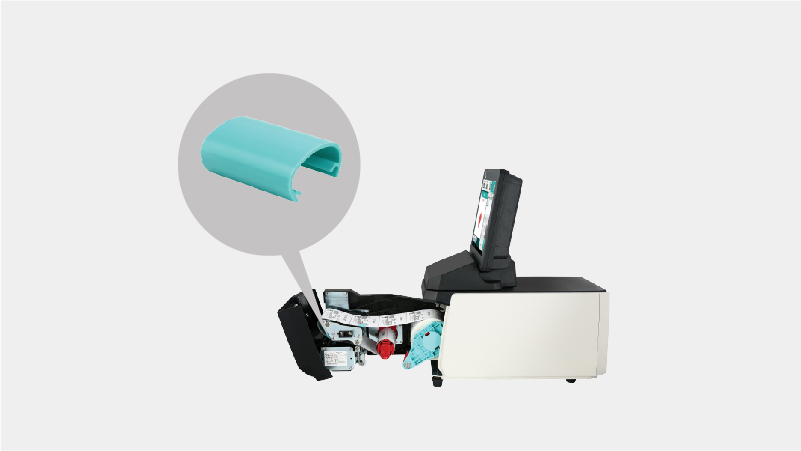

Internal Rewinder Kit

Accommodates batch printing by winding up dispensed labels into a neat roll.
dp5000ePlus_WP09_03

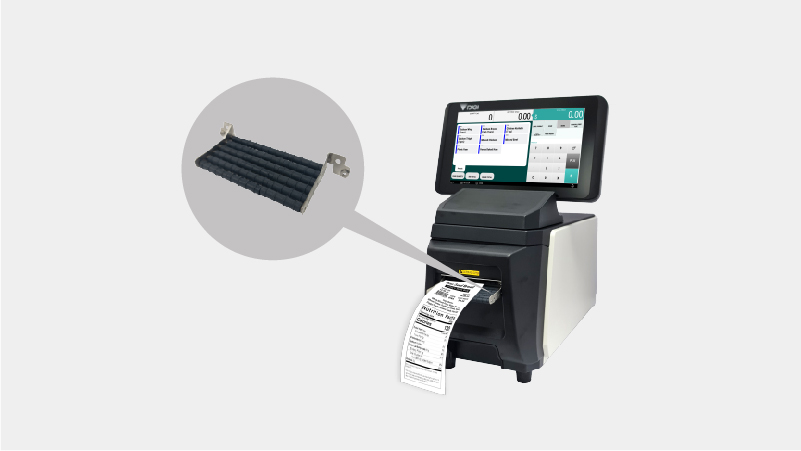

Long Linerless Label Holder

Keep your workplace organised while dispensing continuous label printing.

Options Wireless LAN IEEE 802.11 a / b / g / n / ac, Enchant, InfoTag, e.Label with Hi-Touch, Base Station, Internal Rewinder Kit, Long Linerless Label Holder
Factory Option  Linerless Printer with Auto-Cutter, Auto Linerless Dispenser Kit
