Display Resolution	1/ 3,000, 1/ 6,000, 1/ 7,500
Keyboard	18 x Keypad (For 8" Operator only)
Label / Receipt Types	Linerless With Auto-Cutter
Label / Receipt Roll Diameter	Max 95mm
Label / Receipt Print Width	Max 60mm
Label / Receipt Paper Width	Max 62mm
Label / Receipt Printing Speed	Max 150mm / second*
Label / Receipt Print Resolution	300 dpi
Power Source	Compiled to 80PLUS Power Saving**
Operating Temperature	-10°C to +40°C
Humidity	15% to 85% RH Non-Condensation
Standard Interface	Ethernet 10/ 100 Base T, 4 x USB 2.0, RJ11

^*   To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for details.
** 100-120Vac Gold   (North America, Canada and Japan)
    210-240Vac Silver (European, UK and most of Asia)



Model	Type	Dimension  W x D x H (mm)	Operator display	Customer display	Net weight

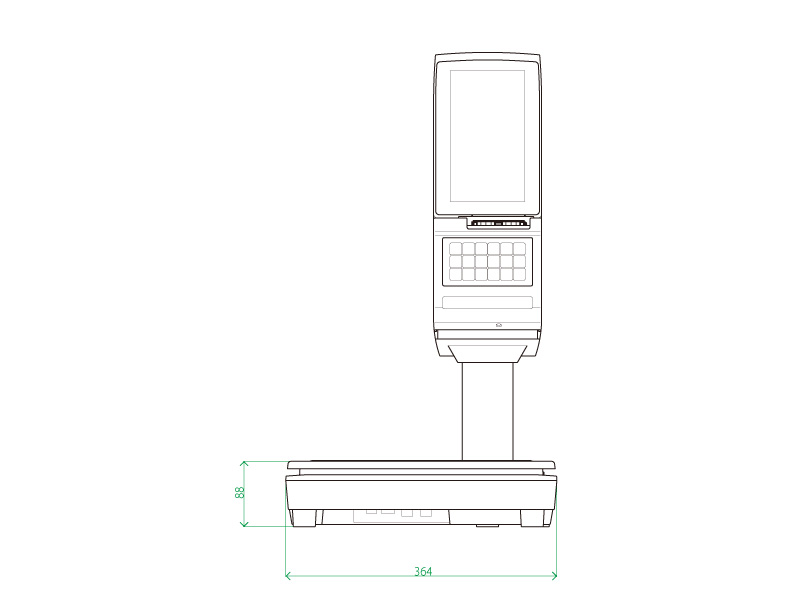

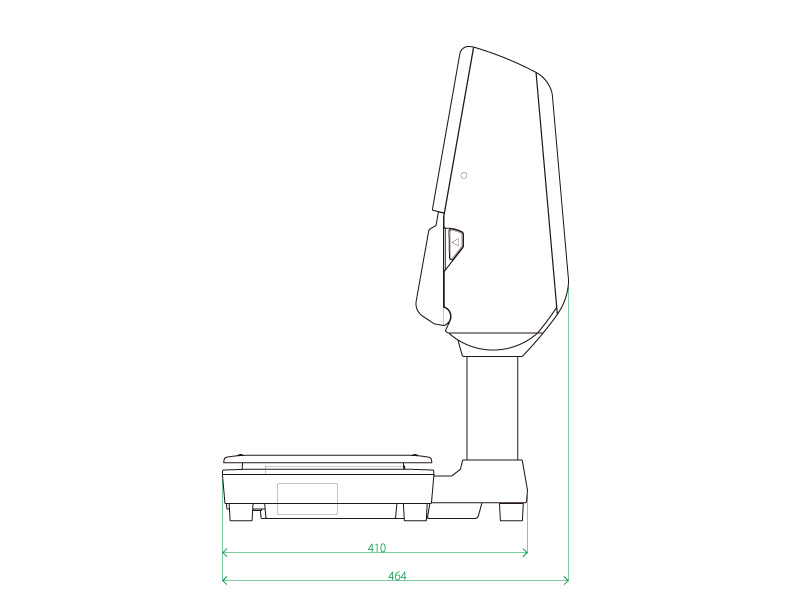

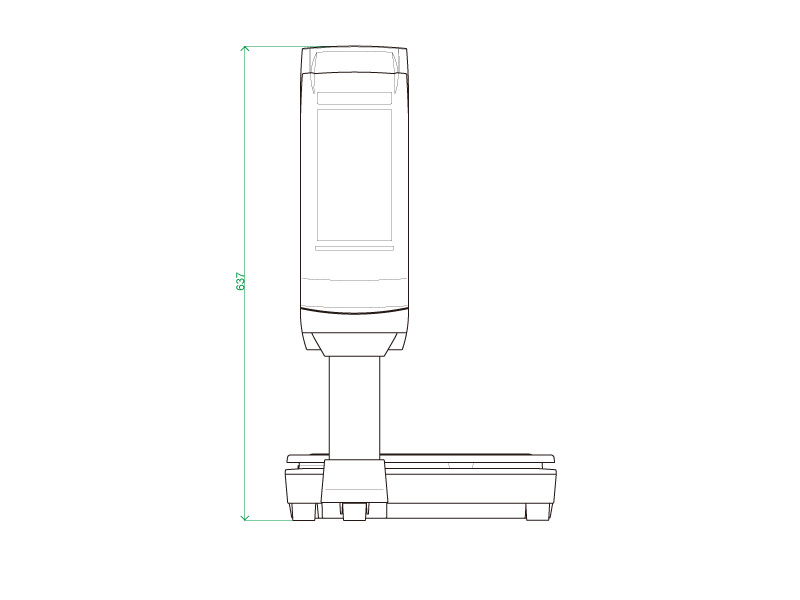

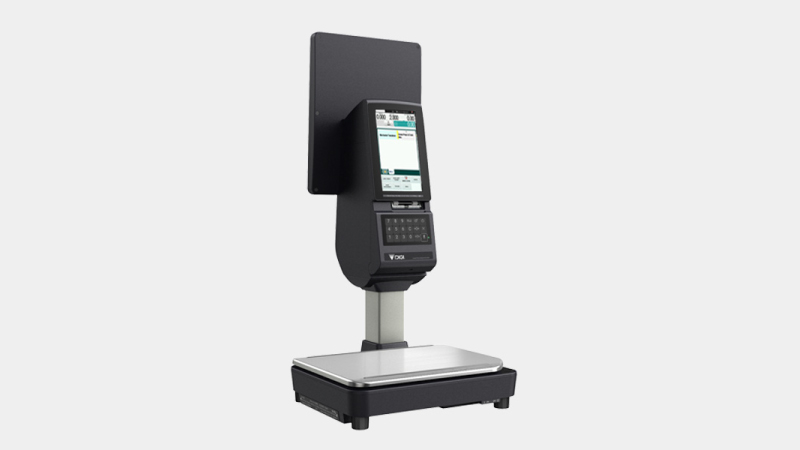

SM-6000 EV	Elevated	364 x 464 x 606	8" TFT WVGA with Capacitive Touch (480 x 800)	8" TFT WVGA (480 x 800)	13.3 kg
SM-6000 EV PLUS		411 x 460 x 766		15" TFT XGA (768 x 1024)	14.9 kg
SM-6000 EV (15)		411 x 464 x 762	15" TFT XGA with Capacitive Touch (768 x 1024)	8" TFT WVGA (480 x 800)	14.9 kg
SM-6000EV(15) PLUS		411 x 460 x 766		15" TFT XGA (768 x 1024)	17.4 kg
SM-6000 EV HC	High Counter	518 x 284 x 429	8" TFT WVGA with Capacitive Touch (480 x 800)	8" TFT WVGA (480 x 800)	12.5 kg
SM-6000 EV HC PLUS		636 x 284 x 459		15" TFT XGA (768 x 1024)	14.1 kg
SM-6000EV (15) HC		586 x 284 x 576	15" TFT XGA with Capacitive Touch (768 x 1024)	8" TFT WVGA (480 x 800)	14.1 kg

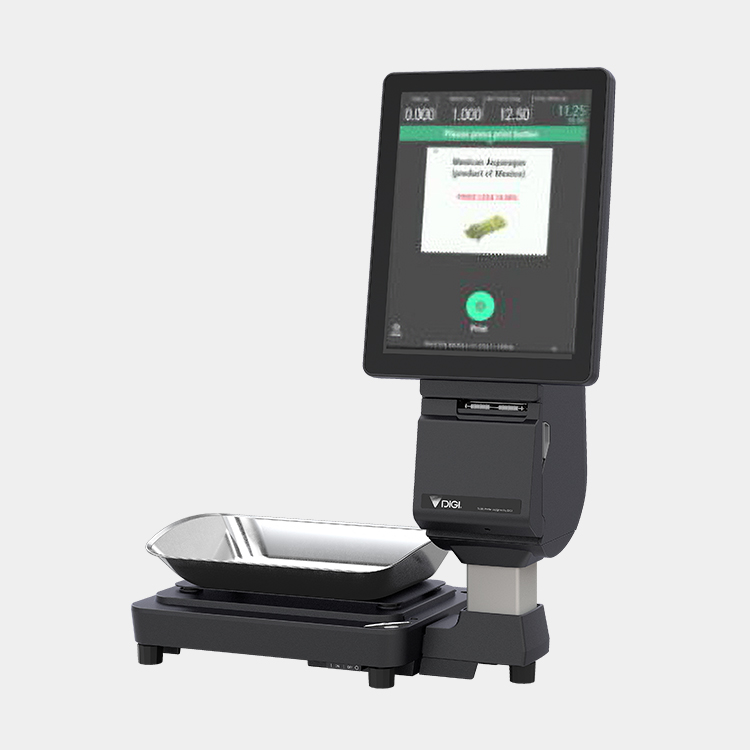

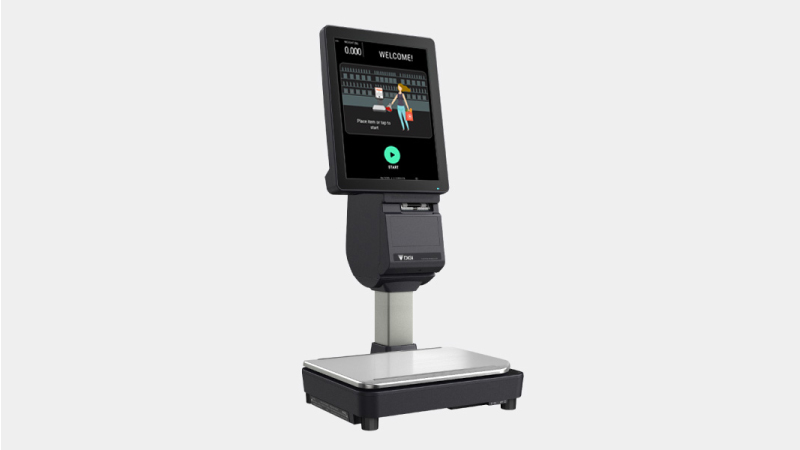

SM-6000 SSP	Self-Service	364 x 464 x 762		―	14.9 kg
SM-6000 SSR (8)		515 x 284 x 549	8" TFT WVGA with Capacitive Touch (480 x 800)		13.7 kg
SM-6000 SSR (15)		583 x 284 x 708	15" TFT XGA with Capacitive Touch (768 x 1024)		15.6 kg
