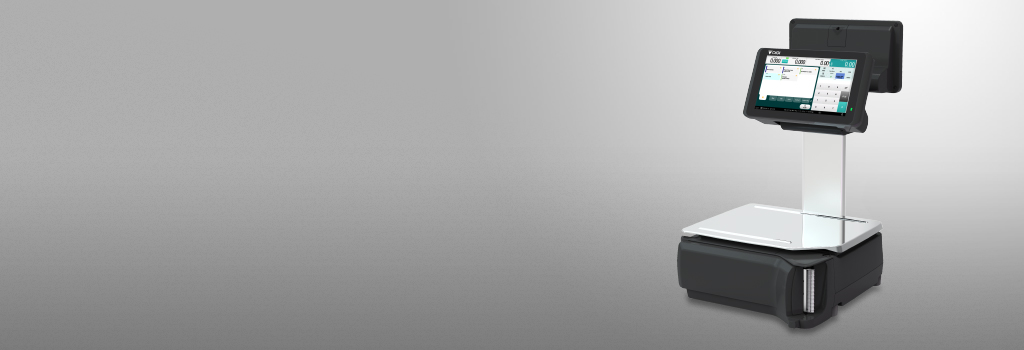

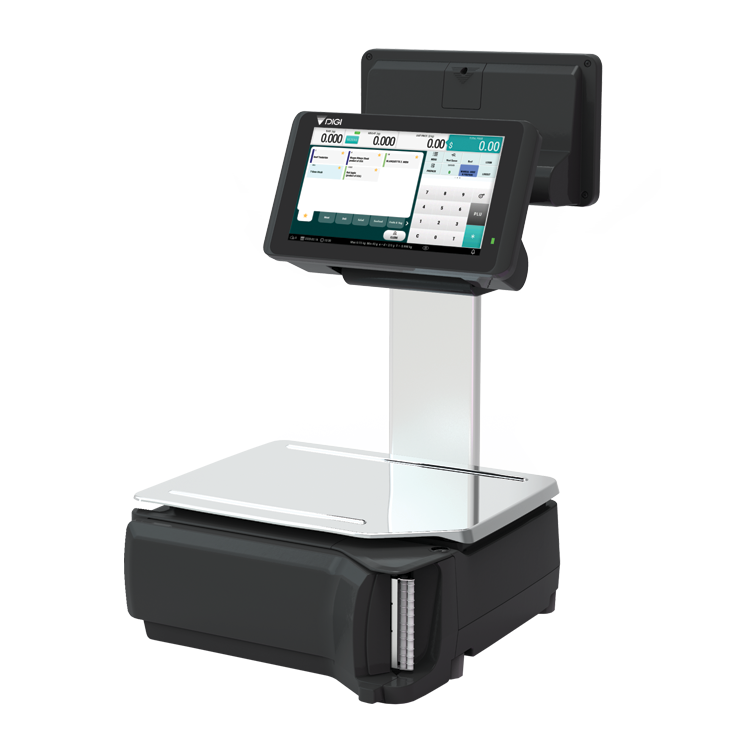

sm5300x_WP02_01

Designed to Excite, Crafted to Excel

SM-5300 X

零售业

主要功能

Rewrite expectations with the SM-5300 X.
Combining high performance and versatility, this modern weighing solution is capable of fulfilling different retail purposes.


  • Easy-to-use and function-oriented user interface
  • Scalable configuration with future-ready solutions
  • Video playback for in-store promotions and advertisements
  • High resolution 300 dpi label printing

Rewriting Expectations

The all-new SM-5300 X marries exquisite design with exceptional performance, bringing a modern weighing solution that exceeds all expectations.

sm5300x_WP04_02

Queue Management & Collection System

Maintain social distancing by keeping in-store queues virtual. When combined with the collection system, retailers can offer a contactless pickup experience to ensure the safety of customers and employees.


  • Minismises physical clustering
  • Customisable queue and collection ticket
  • Optimise waiting time with multi-department queue
  • Supports API integration with third-party mobile queue app

sm5300x_WP04_03

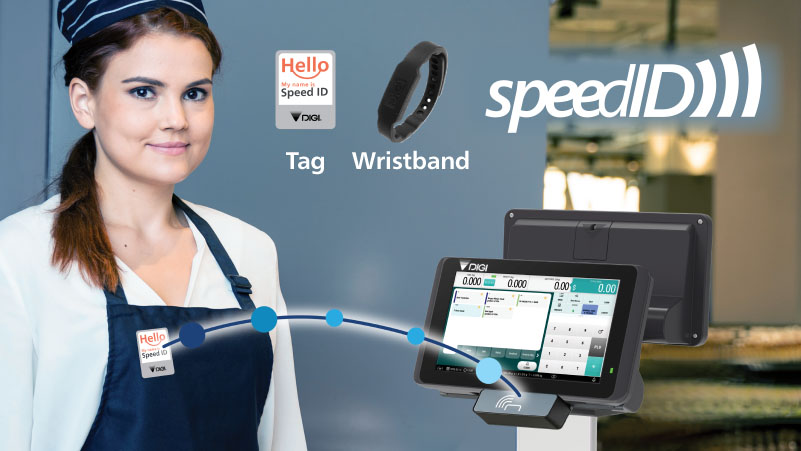

Automatic Clerk Identification

Speed ID taps on RFID technology for a contactless user login to the scale while keeping the scale safe from unauthorised usage. Its touchless nature helps to safeguard the workplace by limiting physical contact amongst operators.


  • Available in 2 variants: tag or wristband
  • Built-in clerk log report allows contact tracing and reduces shrinkage

sm5300x_WP04_04

DIGI Management Console

DIGI Management Console enables remote management of scale data and label design in real-time. Scale and printer status can be monitored at a glance with its dashboard overview. This cloud-based service also provides remote access to sales reports and other remote services such as network wide configuration and software updates.


  • Remote operation eliminates unnecessary physical interactions
  • Reduce downtime and increase productivity

sm5300x_WP04_05

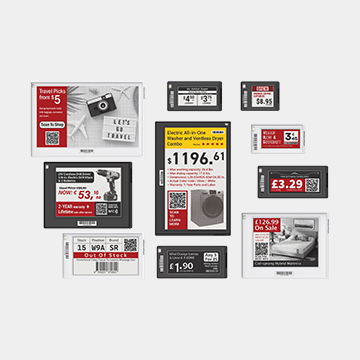

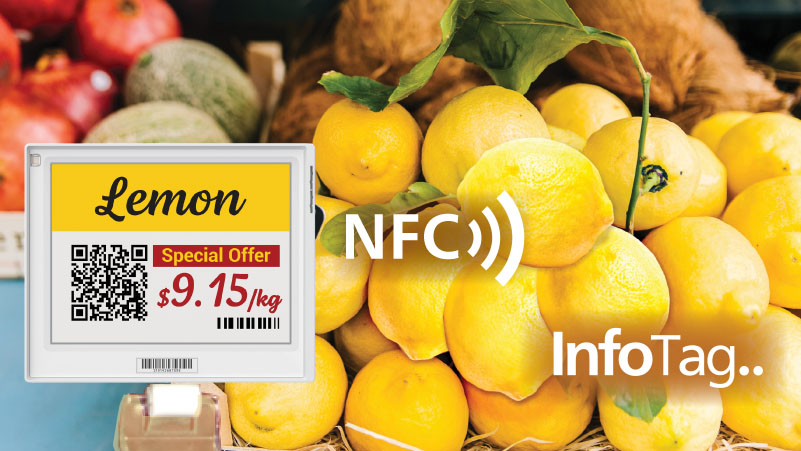

Electronic Signage Label - InfoTag

InfoTag is an enterprise-grade electronic shelf label that grants pricing automation via wireless updates. Its QR code and NFC- Near Field Communication capabilities make product information readily available to customers via their mobile devices.


  • Ensures social distancing with remote price update
  • Promote product and speed up order picking with LED flash indicator
  • Low temperature variant available for freezer environment

sm5300x_WP04_06

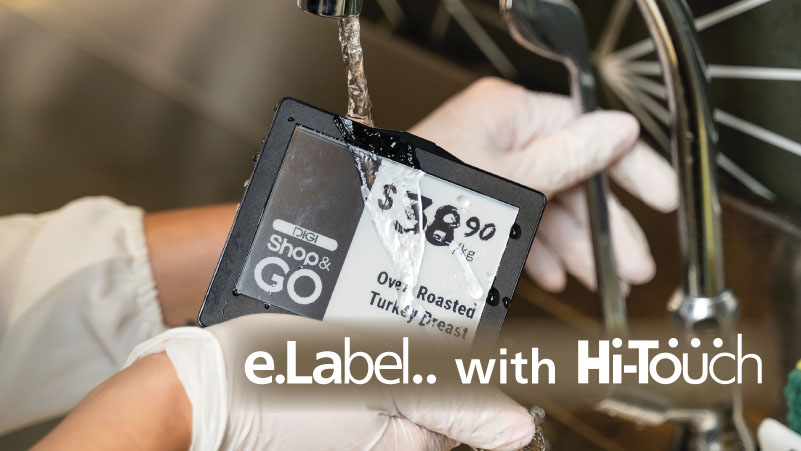

Electronic Signage Label - e.Label with Hi-Touch

e.Label combines a high definition e-Paper display with the tap-activated Hi-Touch feature to achieve maximum readability and fast PLU call-up. Designed for wet environments, the IP67-certified electronic labels are water-resistant and washable to help retailers maintain high hygiene standards.


  • Reduce in-store physical interactions with remote price updates
  • Hi-Touch delivers error-free PLU call-up to boost operational efficiency
  • Available in 3 sizes (1.54”, 2.7”, 4.2”)

sm5300x_WP04_07

Waste Management - Accurate Waste Tracking

DIGI’s waste management solution accurately tracks and measures wastage by capturing its data according to type, quantity and location of disposal.


  • Improve procurement planning with insights from the analysis report
  • Identify near-expiry products for markdowns

sm5300x_WP04_08

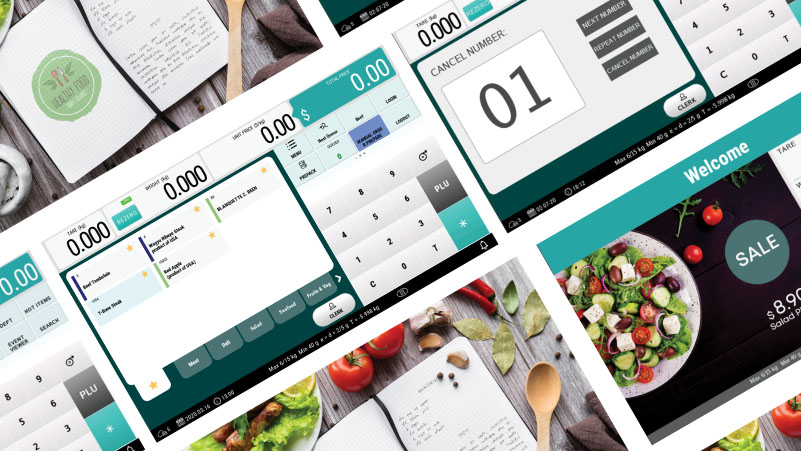

User Interface & Interactive Displays

SM-5300 X features a new user interface that is easy on the eyes and maximises screen usage, displaying only the necessary function keys related to each specific mode.

Its full touchscreen display eliminates the need for a physical keypad while its native video playback capability allows personalised content to be showcased on its customer display to boost engagement.


  • Favourites Tab
  • Video playback capability
  • Support dynamic advertisements

sm5300x_WP04_09

Linerless Label with Auto-Cutter

With no backing paper and twice as many label prints on a single label roll, this sustainable solution helps businesses to maximise inventory space while reducing logistic costs.


  • Quick and easy roll replacement
  • Flexible label design
  • Crisp and appealing label presentation

技术参数

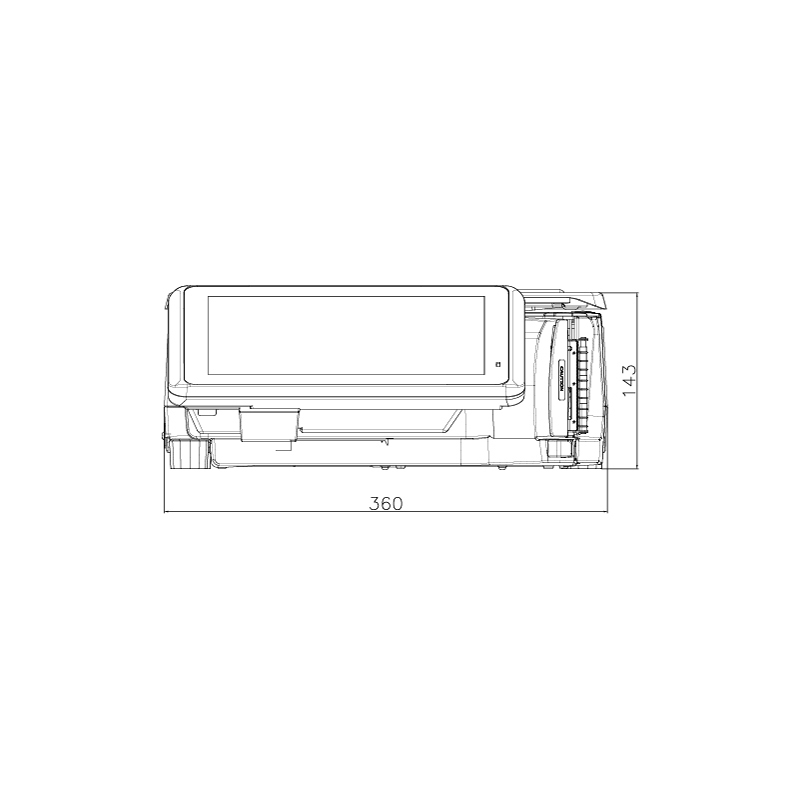

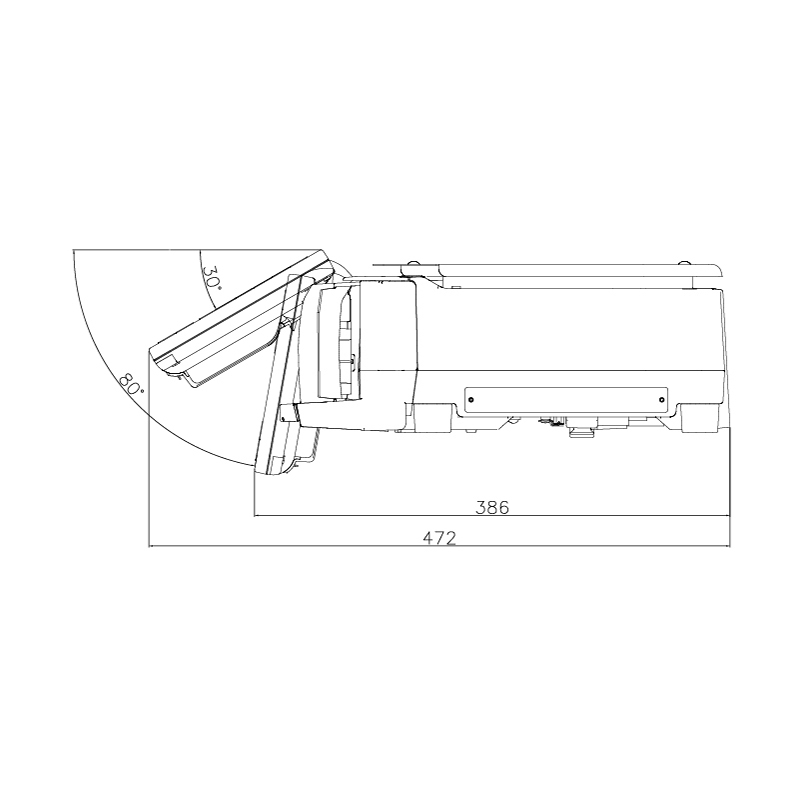

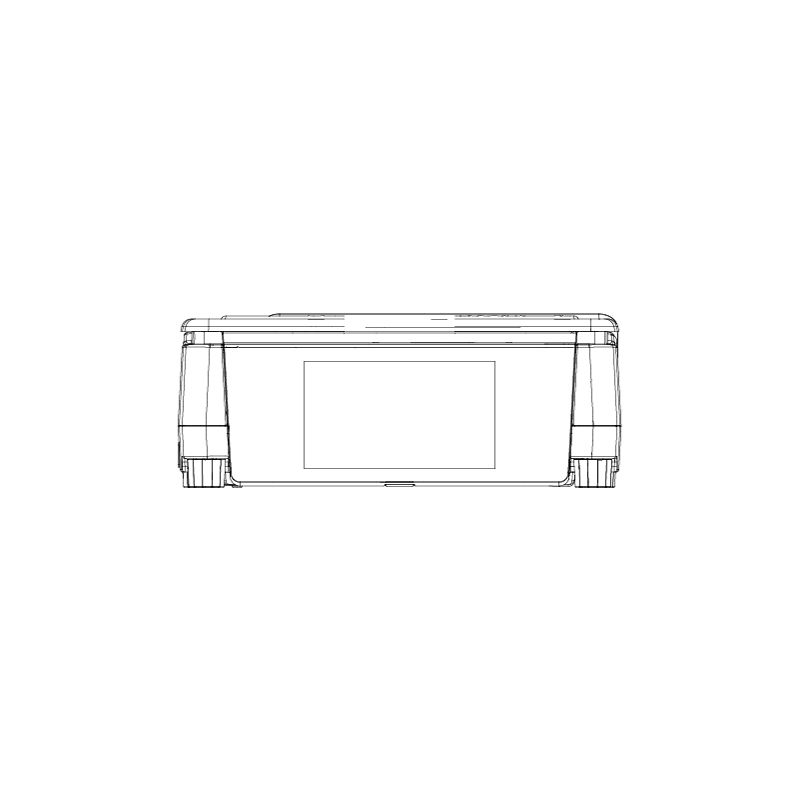

外形尺寸

  • sm5300x_WP05_01
  • sm5300x_WP05_02
  • sm5300x_WP05_03

Specification

Capacity Max 6kg Max 15kg/ 30lb Max 30kg
Single Interval 1/ 3,000 e= 2g e= 5g/ 0.01lb e= 10g
1/ 6,000 or 1/ 7,500 e= 1g e= 2g e= 5g
Capacity Max 3/ 6kg Max 6kg/ 15kg Max 15kg/ 30kg
Multi Interval 1/ 3,000 e= 1/ 2g e= 2/ 5g e= 5/ 10g

SM-5300 X
Model
Bench Pole Elevated Hanging Self-Service
12.1"
Self-Service
19"
Dimension
W x D x H (mm)
360 x 472 x 143 360 x 500 x 542 360 x 510 x 574 400 x 339 x 816 360 x 481 x 637 442 x 480 x 761
Operator Display 10.1" WSVGA with Capacity Touch
(1024 x 600)
12.1" TFT SVGA with Touch        (800 x 600)
19" TFT SVGA with  Touch
(1280x1024)
Customer Display 7" WVGA  (800 x 480)
10.1" WVGA (1024 x 600)
Display Resolution 1/3000, 1/6000, 1/7500
Label /
Receipt
Types Liner  Linerless with Auto-cutter
Roll Diameter Max 125mm Max 95mm
Roll Width Max 73mm Max 62mm
Print Width 60mm 61mm
Printing Speed Up to 150mm / second*
Print Resolution 300 dpi
Power Source AC 100 / 110 or 220 / 230 / 240 Volts (50/ 60 Hz) Auto Switch
Operating Temperature -10℃ to +40℃
Humidity 15% to 85% RH
Standard Interface Ethernet 10 /100 Base T, 4 x USB 2.0, 1 x RJ11
Net Weight 10.7 kg 11.7 kg 13.2 kg 14.0 kg 13.3 kg 17.0 kg

*  To achieve maximum print speed, high sensitivity thermal paper is necessary. Contact DIGI for more details.
** Console variant is available.




不同规格

sm5300x_WP07_01

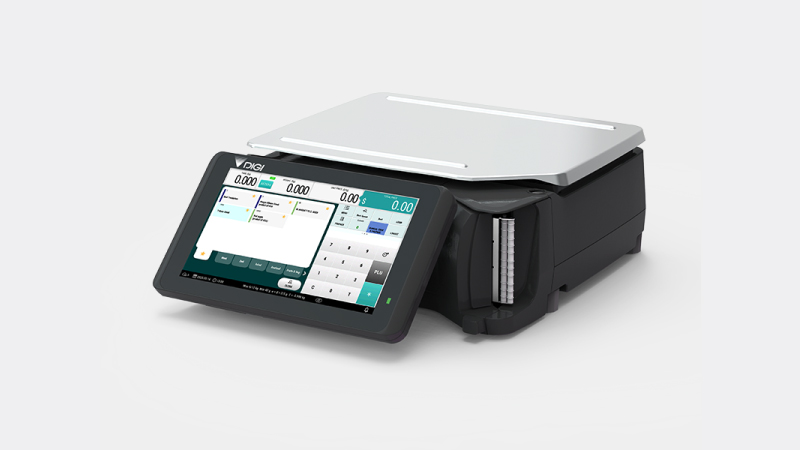

Bench Type

SM-5300 B X



sm5300x_WP07_03

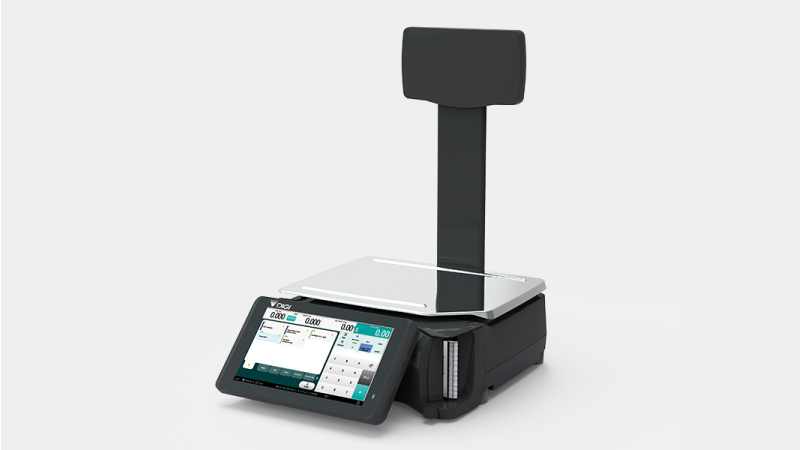

Pole Type

SM-5300 P X



sm5300x_WP07_05

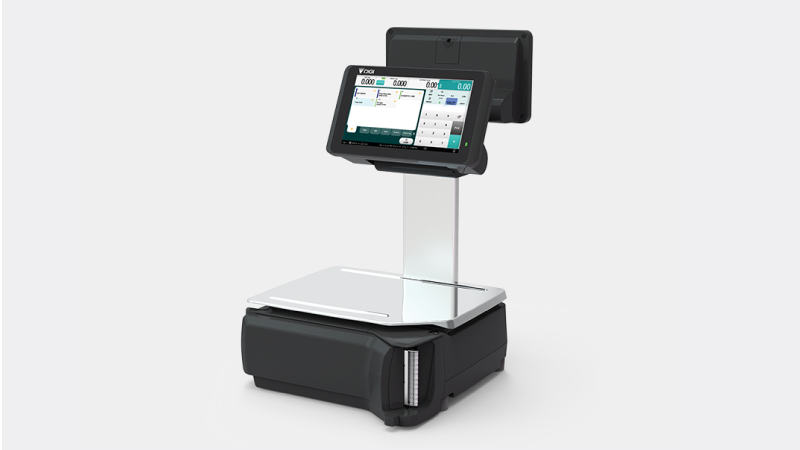

Elevated Type

SM-5300 EV X



sm5300x_WP07_07

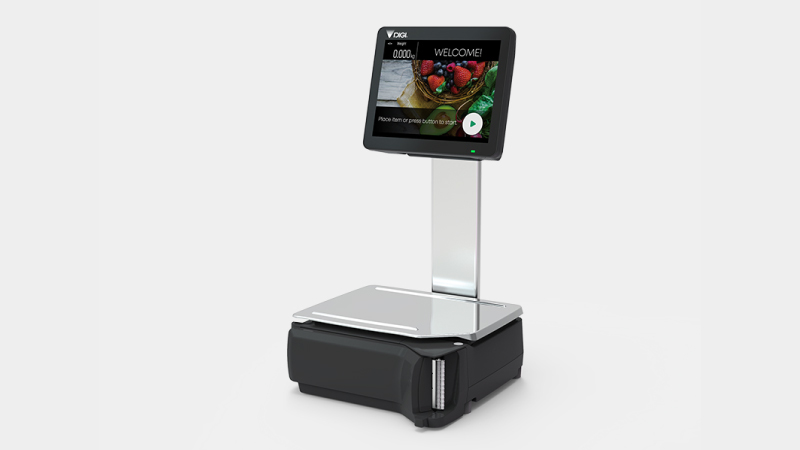

12.1" Self-Service Type

SM-5300 SSP X 12.1"



sm5300x_WP07_09

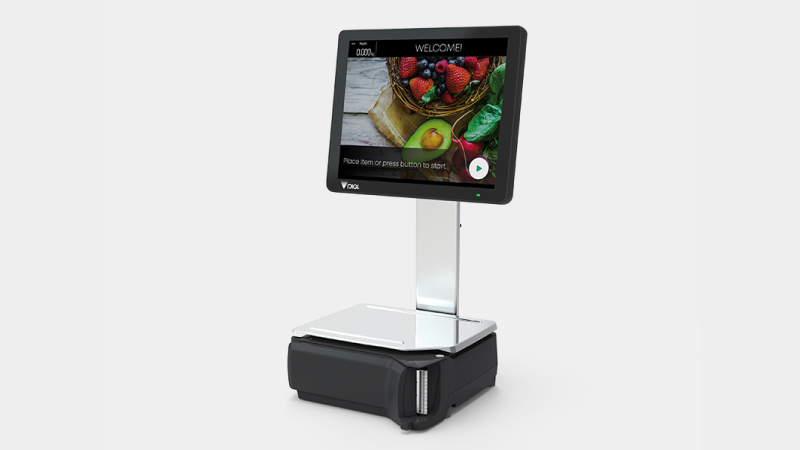

19" Self-Service Type

SM-5300 SSP X 19"



sm5300x_WP07_11

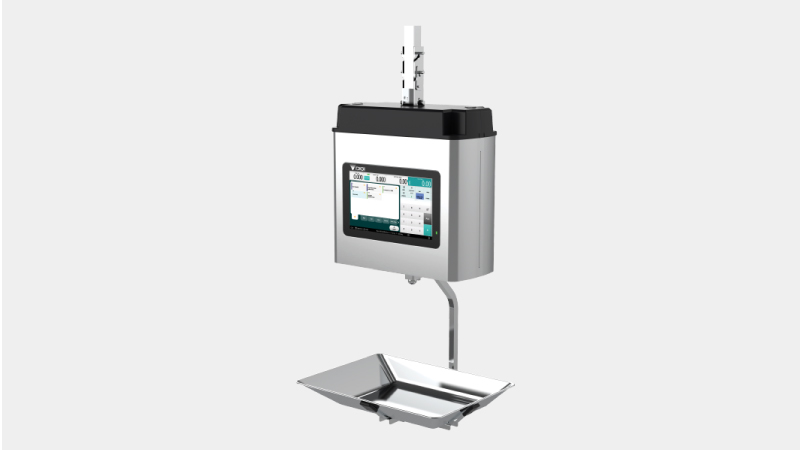

Hanging Type

SM-5300 H X




可选项

Variant Option

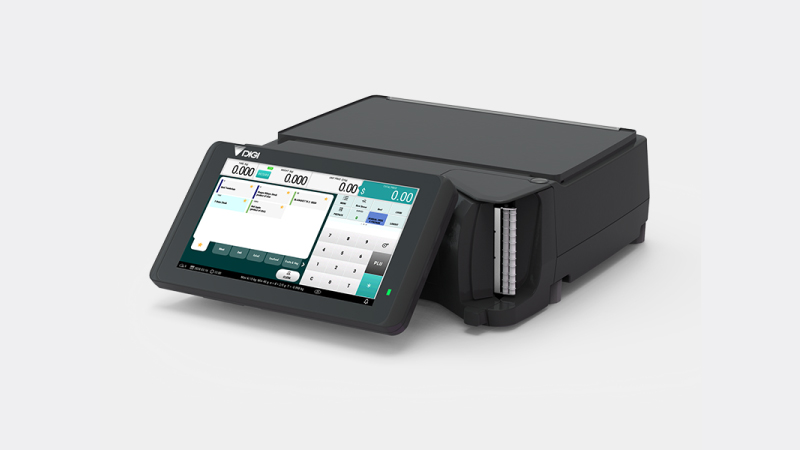

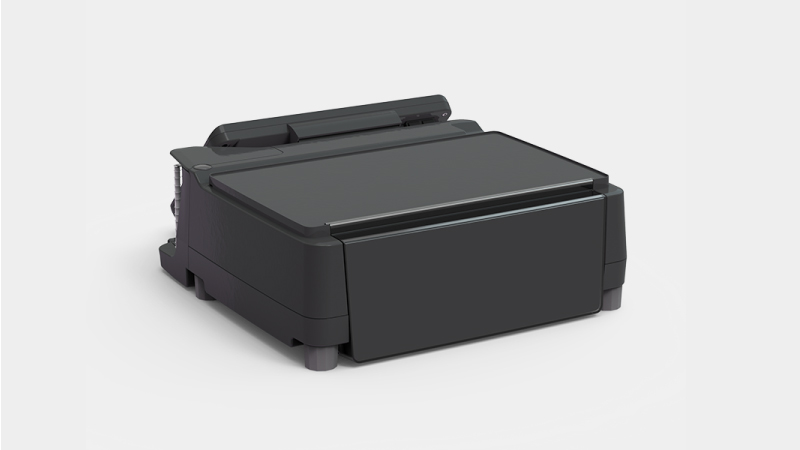

SM-5300 X Console
  • sm5300x_WP09_01
  • sm5300x_WP09_02

Option

Options Wireless LAN IEEE 802.11 a / b / g / n/ ac, Base Station, e.Label with Hi-Touch, InfoTag, Queue Printer, NF-02, Speed ID & Wristband
Factory Option  Linerless Printer with Auto-Cutter
