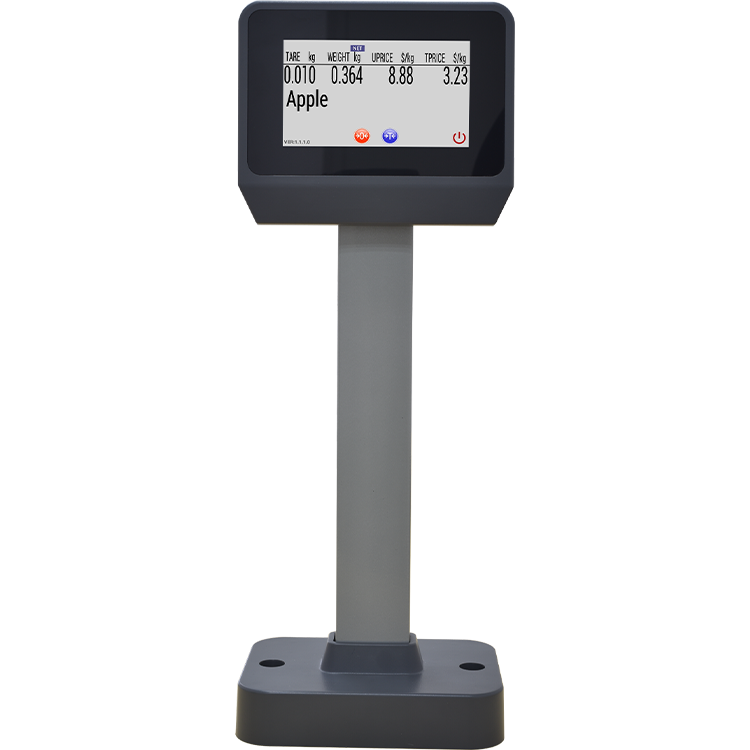

PC-Based checkout scale with alphanumeric touch display

WEB600

零售业

主要功能

A checkout scale with a flexible weighing platform that can be adapted to any POS system, featuring a 4.3" capacitive touch screen alphanumeric display for clear presentation of both numbers and letters.

web600_WP04_01

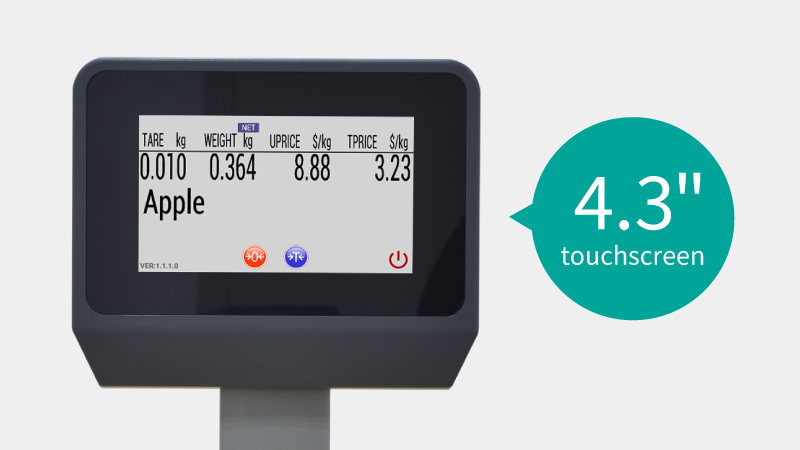

4.3'' alphanumeric display

The PC-Based 4.3'' touch screen display is able to show both letters and numbers to provide additional information at the checkout.

web600_WP04_02

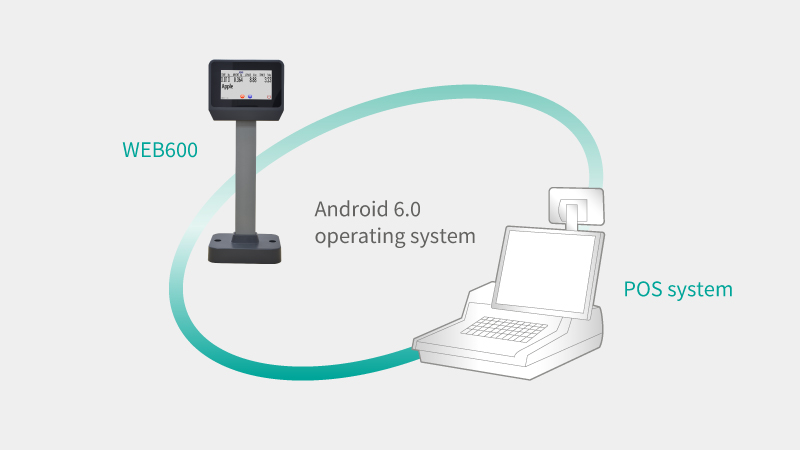

Android-based system

WEB600 features the Android 6.0 operating system, allowing for further integrations with the POS system, thanks to its PC-based system.

技术参数

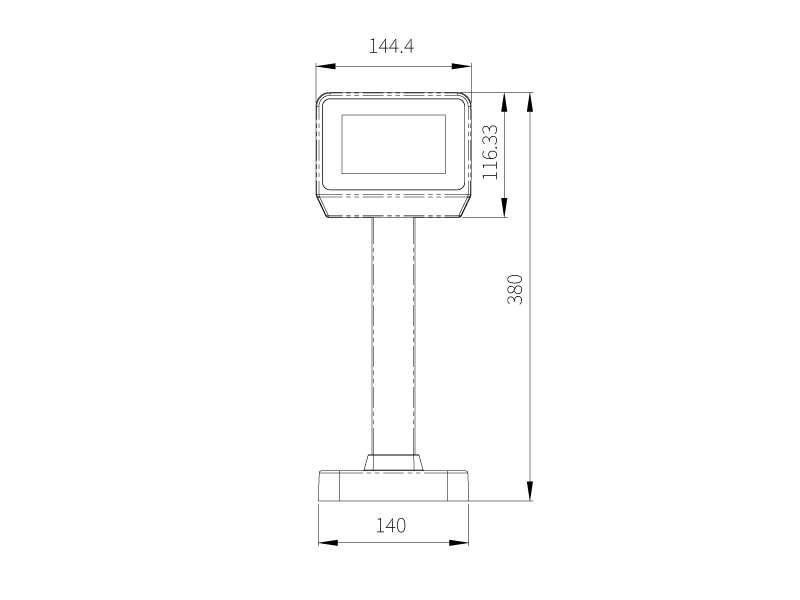

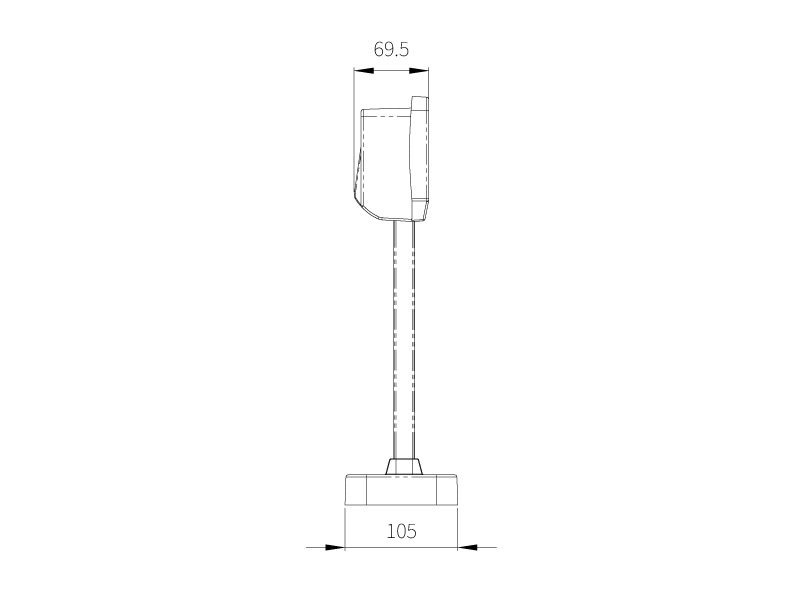

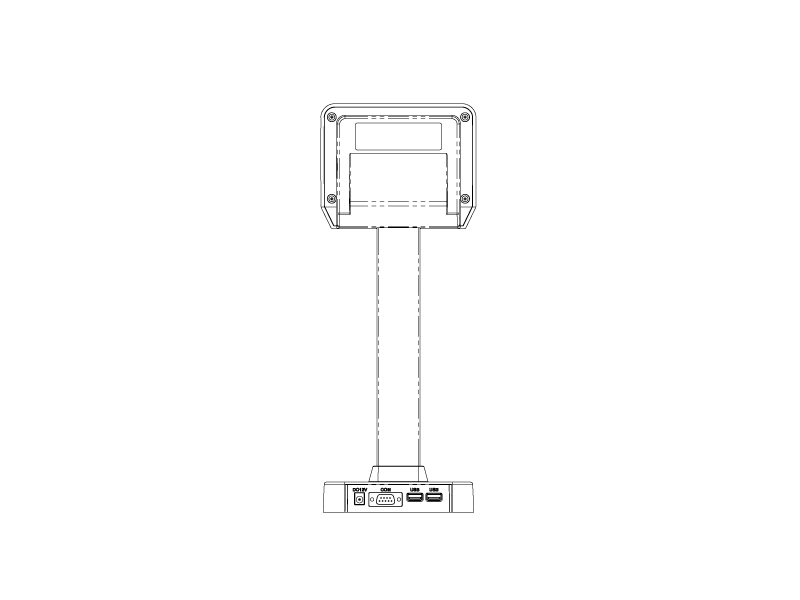

外形尺寸

  • web600_WP05_01
  • web600_WP05_02
  • web600_WP05_03

Weighing

Capacity Max 3/6kg Max 6kg/15kg Max 15kg/30kg
Multi Interval 1/3,000 e=1/2 g e=2/5 g e=5/10 g

General

CPU Onboard A64 Quad-core ARM Cortex-A53 1.2GHz
Memory 1G DDR3L co-layout memory
Storage 8G co-layout eMMC NAND flash
Operator display 4.3 inches TFT LCD 800*480 pixels with Capacitive Touch panel
WLAN WIFI 2.4G/5G IEEE 802.11ac/a/b/g/h
Bluetooth Ver 4.0
Power AC/DC Adapter 12V/3A (36W)
External Interface 1 x COM
2 x USB TYPE A
1 x DC JACK
OS Android 6.0

不同规格

ds984_WP07_03

Built-in Loadcell block for scanner

WEB600 PS-B

Dimensions: see attached image
