主要功能

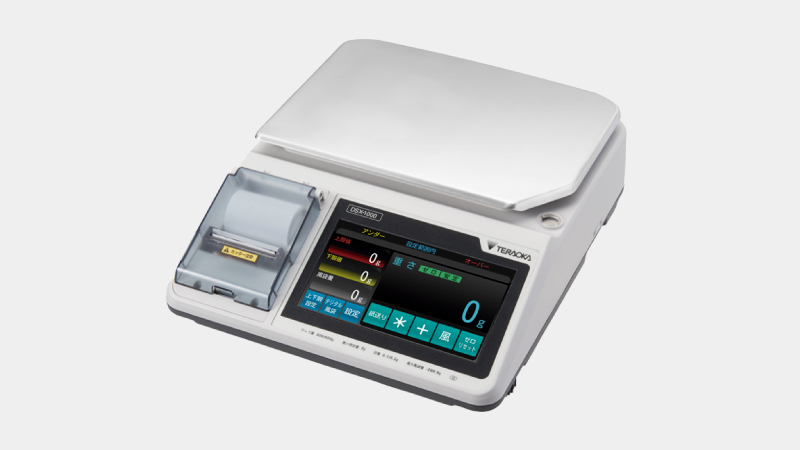

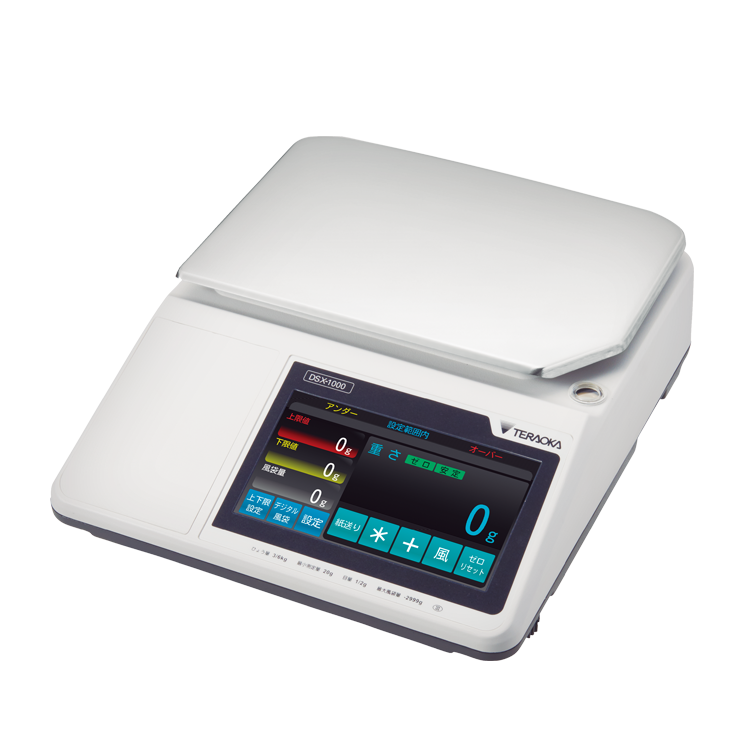

DSX-1000 comes equipped with an easy-to-read, 7-inch color LCD panel that helps prevent weight check errors by clearly displaying the weight and setting values.
The scale automatically checks the weight against preset upper and lower limits and notifies the user that the weight is LOW, OK, or HIGH with indicator lights and a built-in audible alarm.
Its full-featured printing functionality (for built-in printer models) lets you better manage the weighing process by providing a print-out with a serial item number, the check result, and the tare amount.
DSX-1000 has a standard RS-232 interface for sending weighing data to a PC or an optional external printer. The interface can also be used to control other equipment.
DSX-1000 also features a large 270.9 x 198.4 mm weighing platter.

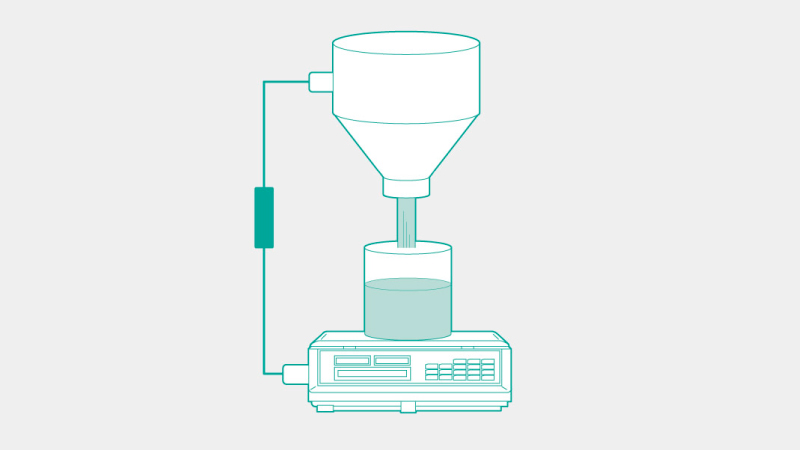

Example of a System That Uses Set Points
The set point output (two points) can be used to fill a container with a fixed amount of liquid or powdered raw material.
技术参数

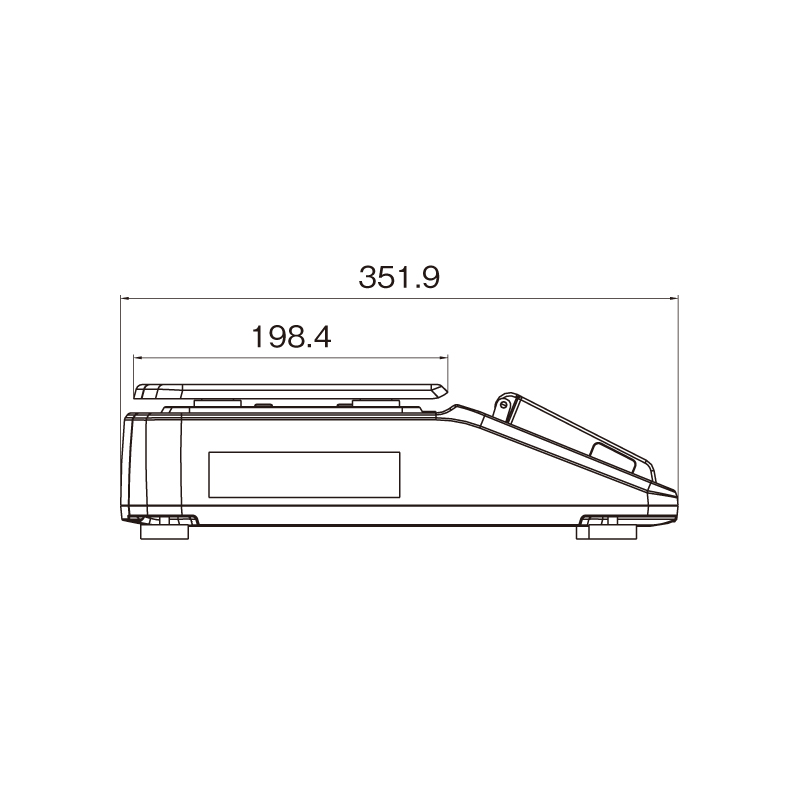

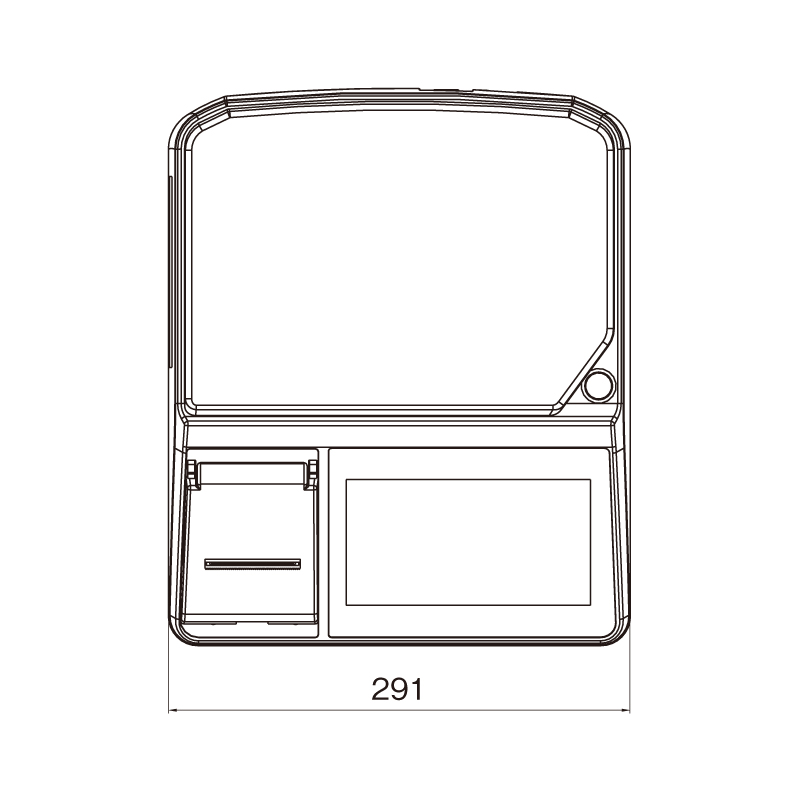

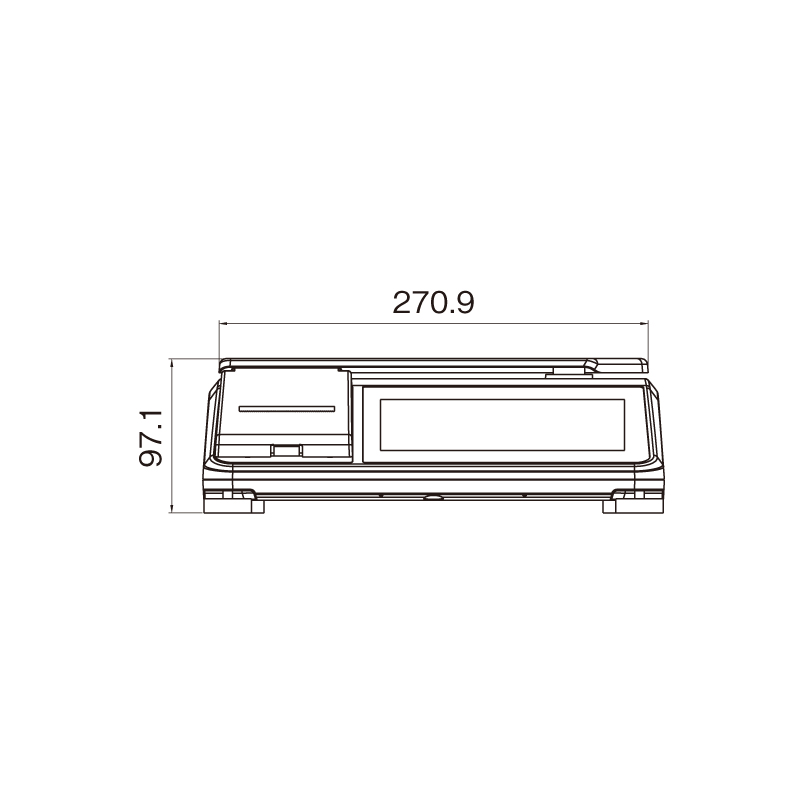

外形尺寸
Single interval tyle
| Capacity | 1/3,000 | 1/6,000 | 1/7,500 | 1/12,000 | 1/15,000 |
|---|---|---|---|---|---|
| Max. 600g | e=0.2g | e=0.1g | e=0.05g | ||
| Max. 6kg | e=2g | e=1g | e=0.5g | ||
| Max. 15kg | e=5g | e=2g | e=1g | ||
| Max. 30kg | e=5g | e=2g |
Multi-interval type (Display resolution: 1/3,000)
| Capacity | Minimum Graduation |
|---|---|
| Max. 600g | (0-300g)-0.1g (300g-600g)-0.2g |
| Max. 6kg | (0-3kg)-1g (3-6kg)-2g |
| Max. 15kg | (0-6kg)-2g (6-15kg)-5g |
| Max. 30kg | (0-15kg)-5g (15-30kg)-10g |
| Internal resolution | :1/300,000 |
| Weight sensor | :Local cell |
| Power Source | :AC 100V～240V. |
| Operating Temperature | :-10℃/14F～+40℃/+104F (OIML). |
| Operating Humidity | 15～85% RH. |
| Power Consumption | :22W when using AC power. :33W when using AC power with printer. |
不同规格
Built-in Printer Model
DSX-1000P
可选项

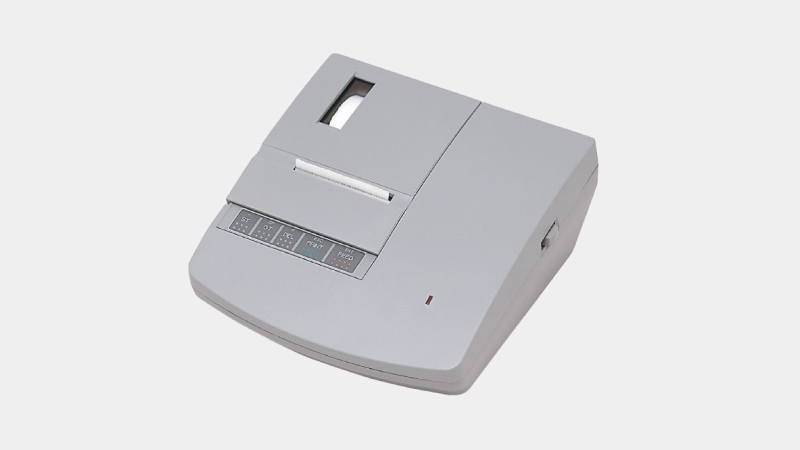

DP-255AT (External Printer for the DSX-1000)
It prints statistics such as the maximum value, minimum value, average value, and the number of measurements.
By including the MAX and MIN limit settings received from the scale, the printer can also be used for creating weight measurement reports.
常见问题解答
-
How do I check the weighing data on my PC?You can use weigh scale communication software (sold separately) to display the data on your PC. You can also save the data in CSV format.
