aw5600-2_WP02_01

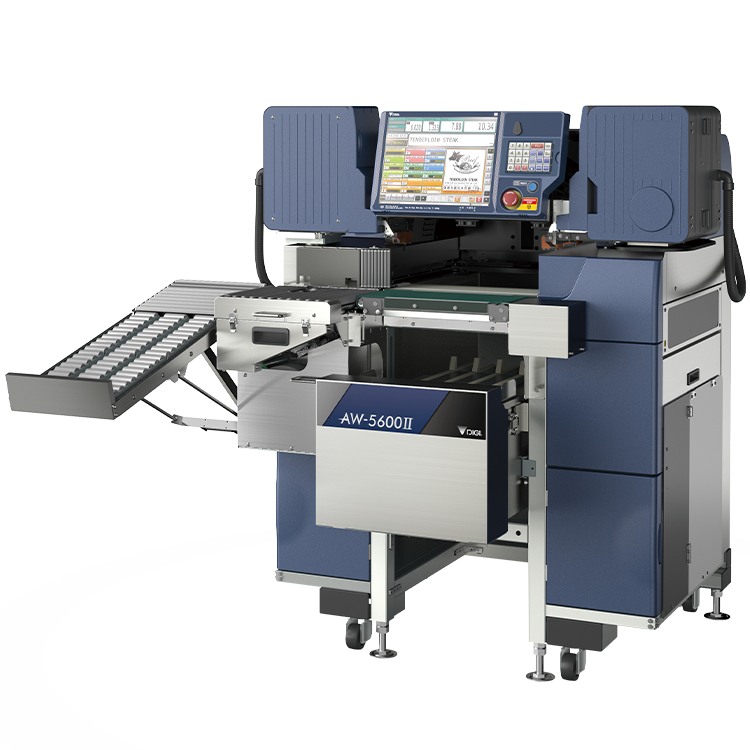

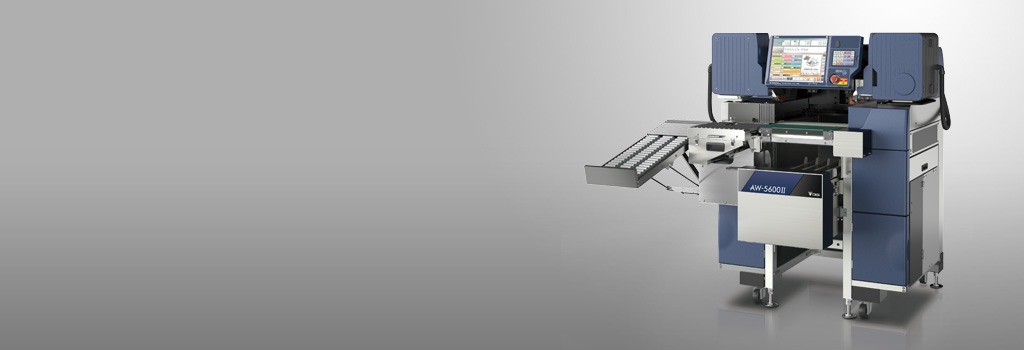

Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness

AW-5600ATII

零售业

主要功能

AW-5600ATII is a high-performance automatic weigh-wrap-label system that’s reliable, productive, and easy to operate. Efficient use of energy and consumables helps to minimize both cost and the machine’s ecological footprint.

Wrap, weigh, and label with a single machine

The AW-5600ATII allows you to weigh, wrap, and label on one machine with one operator. Watch the video to see how it processes products with speed and agility.

aw5600-2_WP04_04

Maximize productivity

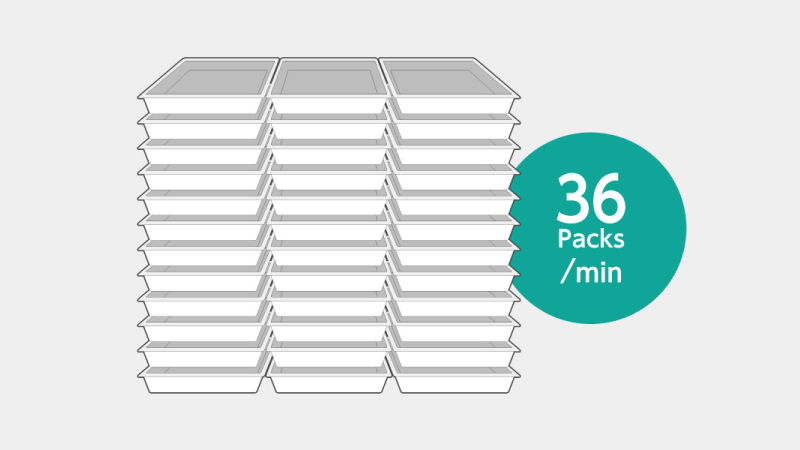

Increase output with high-speed processing of up to 36 packs per minute.

Simply place a product tray on the infeed, and in seconds, the machine seals the item and applies both POP and product labels with accurate weight and price information.

The machine automatically detects and adjusts to different tray sizes, further simplifying operation.

aw5600-2_WP04_05

Save time and cost—reduce waste

Super-stretch technology means less amount of film is required to cover the pack’s surface area.

This efficient use of film cuts down on waste and ensures that you get more out of a single roll, leading to a reduction in both the cost of consumables and maintenance downtime.

Linerless labels contain no paper backing, eliminating paper waste. And with energy conservation mode, you can reduce power consumption when the machine is on standby.

aw5600-2_WP04_05

Enhance product appearance

DIGI’s wrapping solutions stretch film over the product with optimal tension for a high-quality finish, and flexible label design broadens the possibilities for attractive product promotion.

With linerless labels, label length is automatically adjusted to fit the content, eliminating blank space while guaranteeing that necessary product information is clearly displayed.

These features ensure top-quality presentation to enhance the value of your product.

技术参数

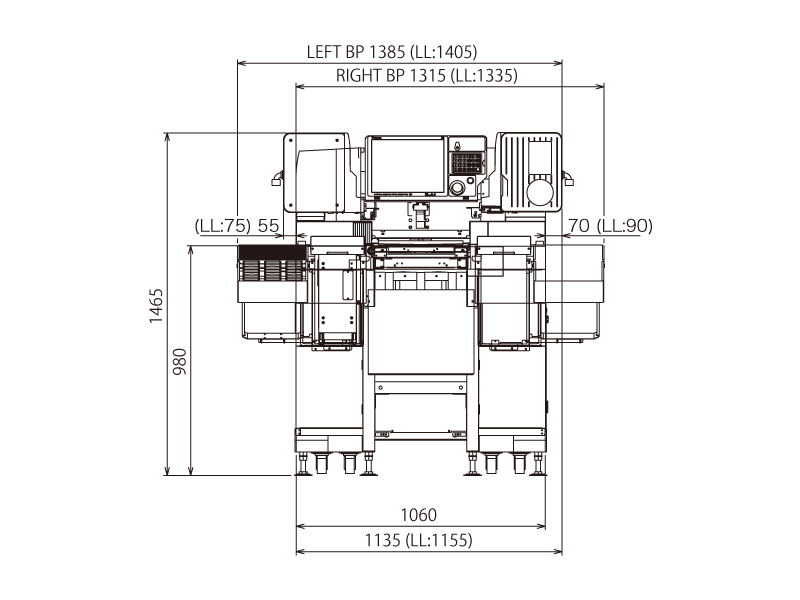

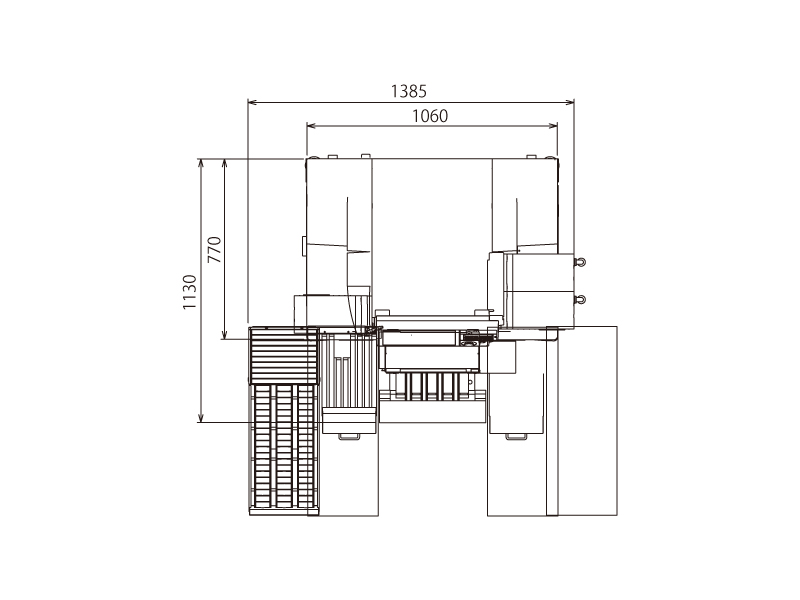

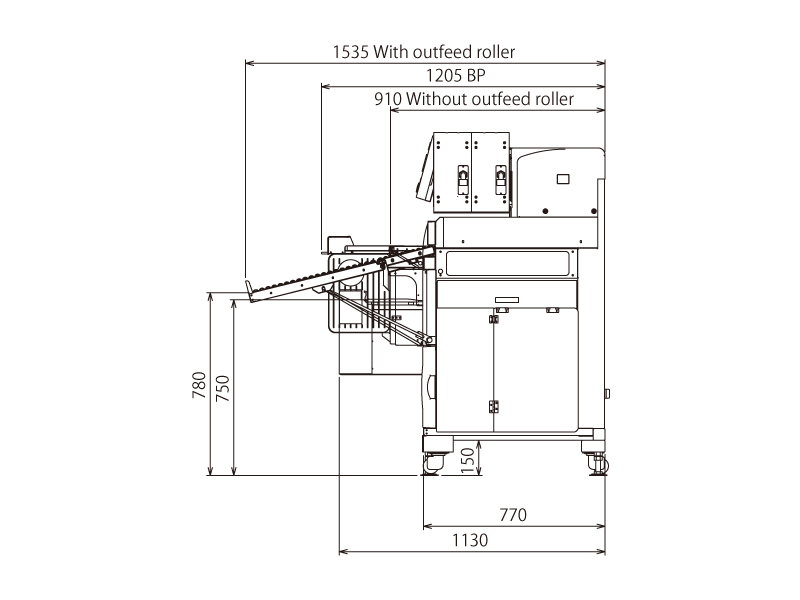

外形尺寸

  • aw5600-2_WP05_01
  • aw5600-2_WP05_02
  • aw5600-2_WP05_03

Wrapping

Wrapping speed Max. 36 packages/min.
Package size Width: 130 to 380 mm / 5.1-15 inches
Height: 10 to 130 mm /0.4-5.1 inches
Depth: 80 to 254 mm / 3.1-10 inches

The combination of maximum size of each dimensions cannot be used.
The size of the package that can be wrapped also depends on the film to use.
Film roll capacity One
Film width 300 to 450 mm


Weighing

Interval type Multi interval Single interval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb


Labeling

Label type Thermal printer
Labeling application Automatic
Label width 40-80 mm/1.6-3.1 inches
Label length 28-105 mm/1.1-4.1 inches


Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB


General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW
220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW
Net weight Approx. 400 kg / 882 lb


不同规格

Model with pack accumulator

AW-5600ATII

This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.

Model with promotional labeler

AW-5600ATII POP

In additional to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
Linerless labels can be applied by all labelers.

Model with bottom labeler

AW-5600ATII BP

In additional to product labels, this model is equipped with a labeler for bottom label. The machine can automatically apply both product labels and bottom labels simultaneously.
Linerless labels can be applied by all labelers.
