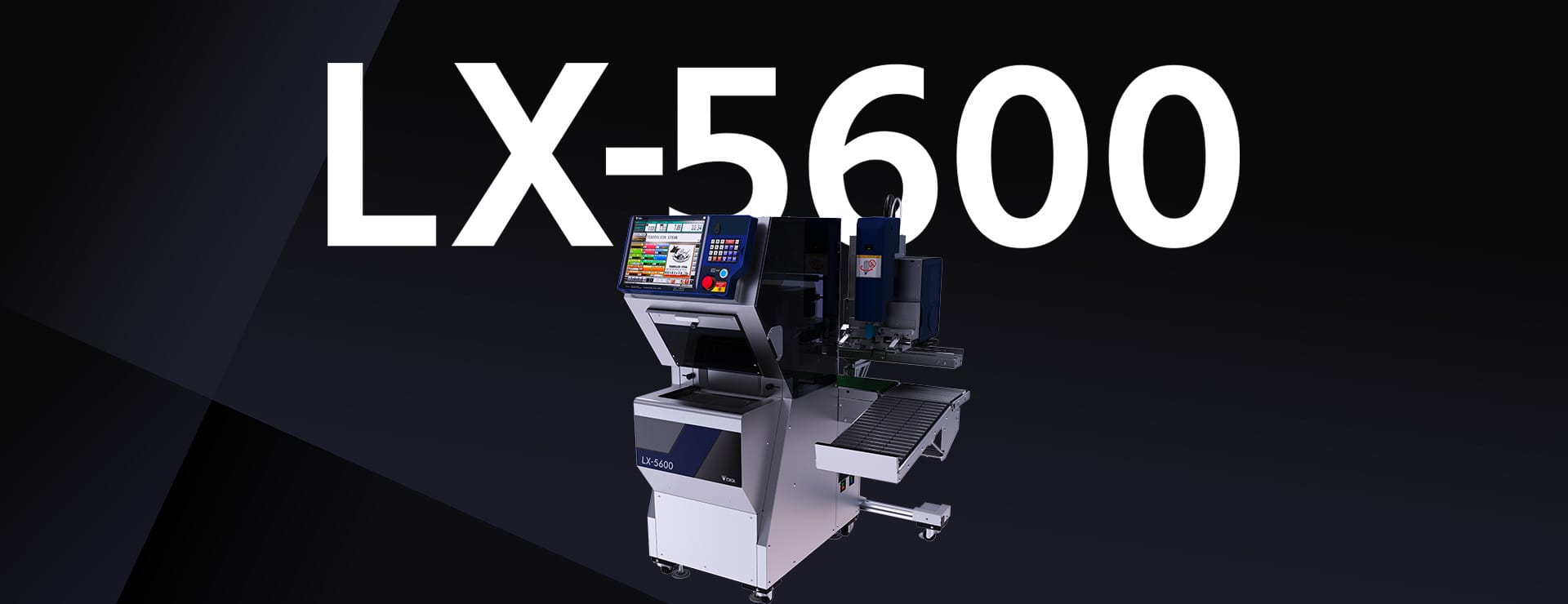

LX-5600

Revolutionizing the Supermarket Backroom with DIGI's World's First All-in-One MAP Tray Sealer

Setting A New Standard by DIGI
DIGI proudly presents the LX-5600, revolutionizing backroom operations
with enhanced productivity and efficiency with the world's first weigh-seal-label MAP tray sealer

Detail-1

Fully Integrated Compact
MAP Tray Sealer

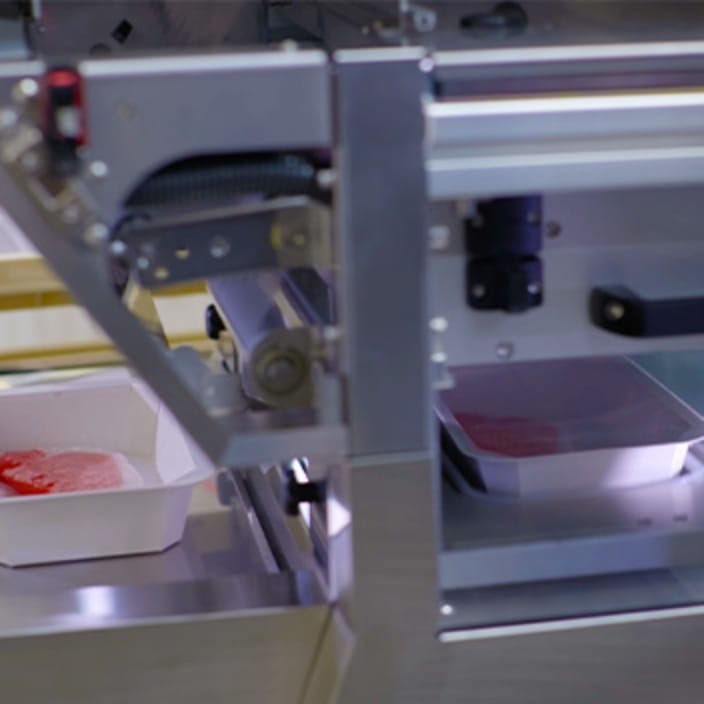

The LX-5600 is the world's first tray sealer capable of weighing, gas flushing, top sealing, and labeling fresh food.

Innovative Features

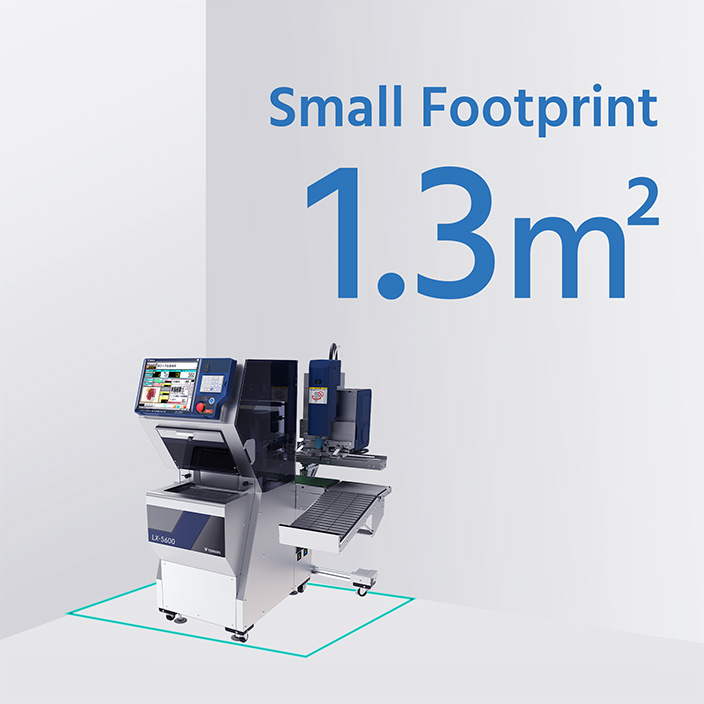

  • Its small footprint of just 1.3m² allows for flexible installation layouts, easily fitting into backroom spaces

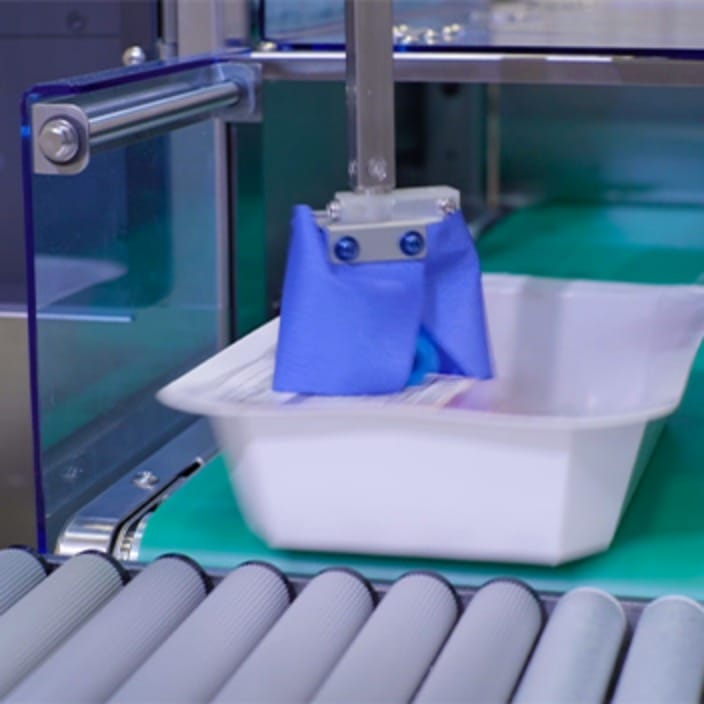

  • It can simultaneously apply up to three labels on a tray - two on top and one on the bottom side

  • It can easily switch between two types of gases for each item

Detail-2

Contributing to
Food Waste Reduction

In line with the SDGs which aim to halve food waste by 2030, MAP technology contributes to this goal by preserving food freshness, leading to a substantial reduction in food waste.

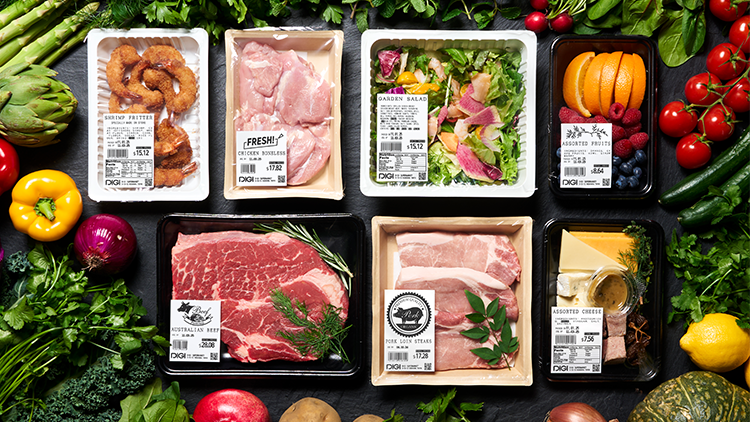

New Standard with MAP

  • Prolongs food freshness, enabling households to fully consume their food stocks and minimizing spoilage

  • Extends product shelf life, effectively reducing food expiration in stores

  • Helps in reducing environmental impact from food waste

Detail-3

Minimizing "3 Major Losses"
at Stores

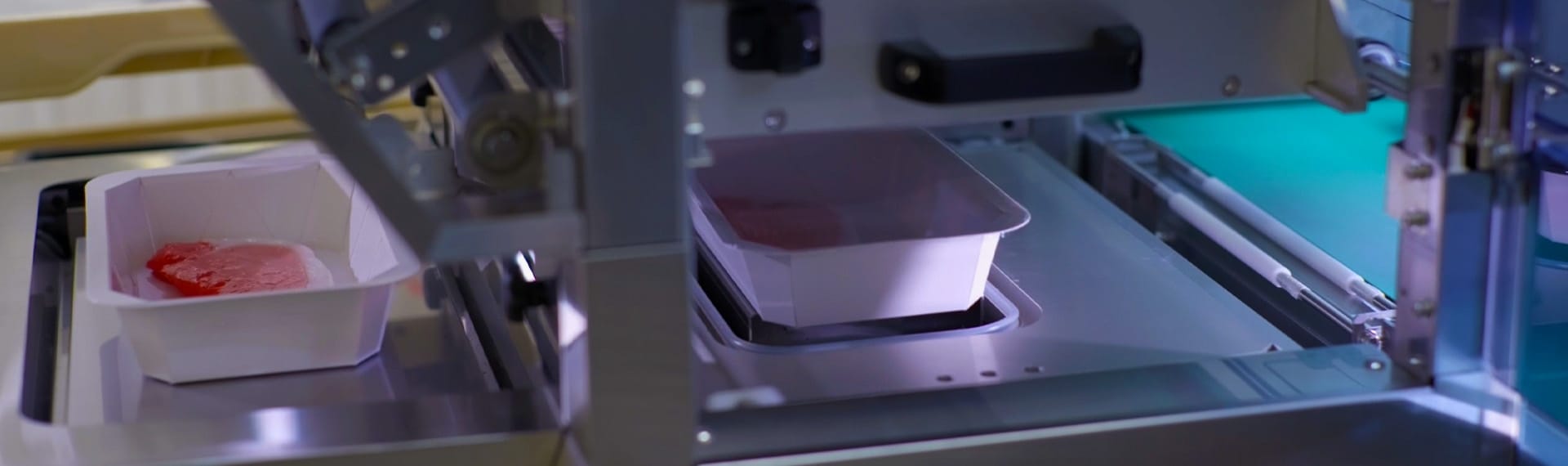

MAP technology maintains food freshness and extends shelf life, resulting in various benefits.

Loss-reducing Innovation for Retail

  • Reduced "disposal loss", due to extended availability on the shelves

  • Minimal "discount loss", from products approaching their expiration

  • Lower "sales opportunity loss", with shelves constantly stocked from store opening to closing

Detail-4

Economical and
Ecological

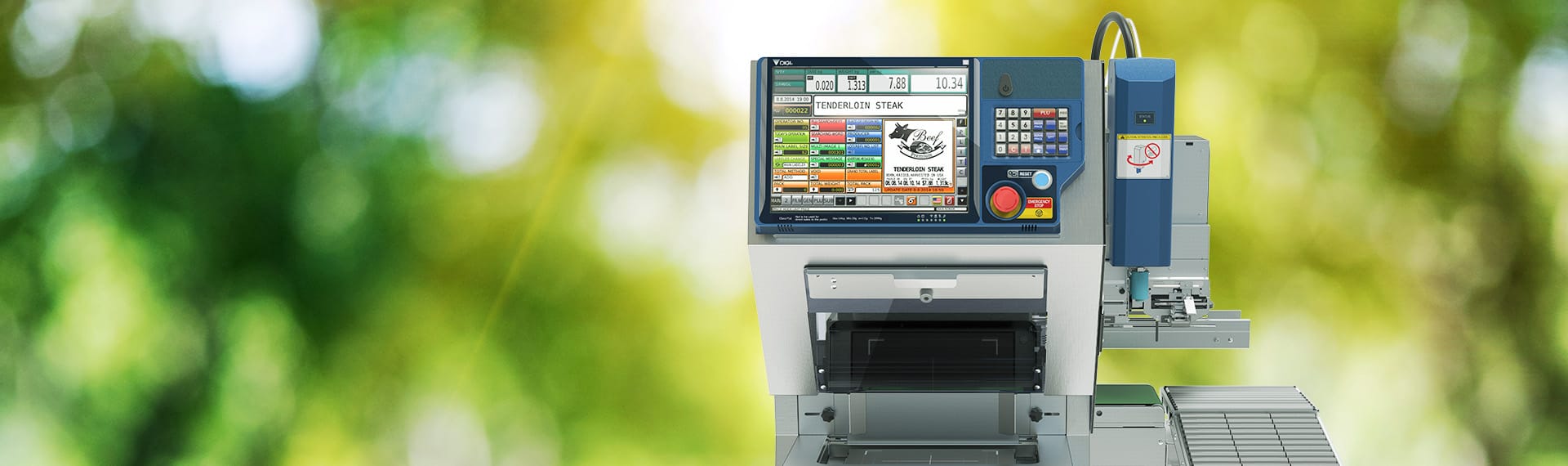

LX-5600 is designed for operational efficiency,
minimizing both running costs and environmental impact.

Environmentally Friendly Design

  • Innovative design that eliminated the need for a vacuum pump and compressor

  • Lower power consumption*

  • Reduced consumption of food-safe gas through gas flushing technology*

    *Compared to conventional MAP machines
Detail-5

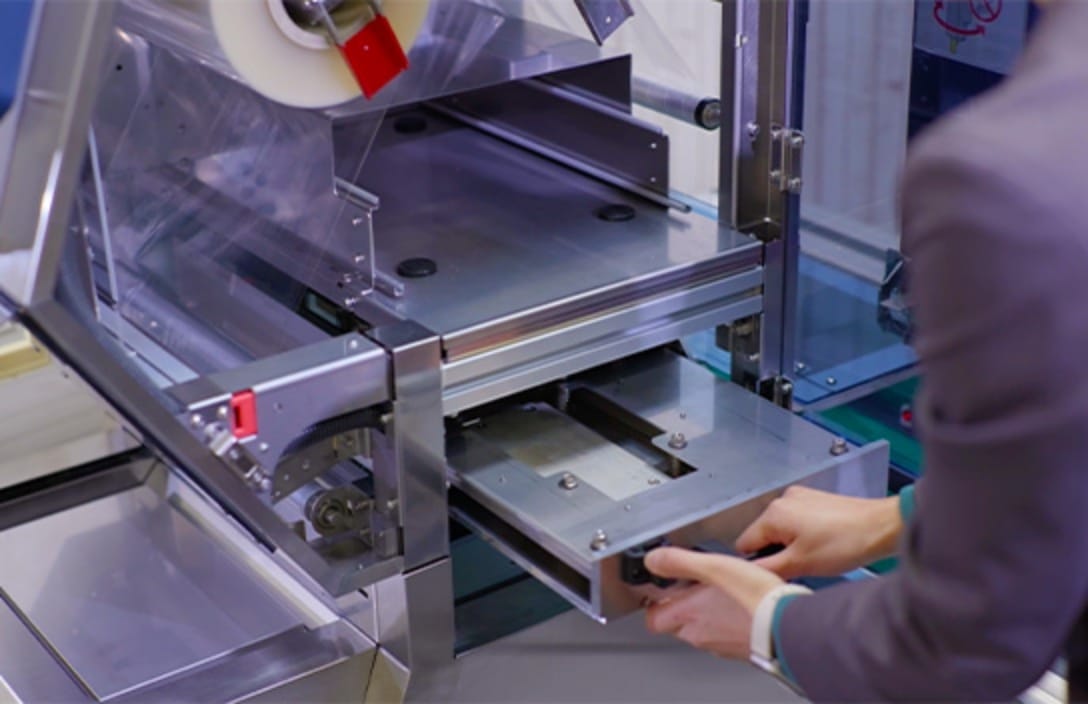

Easy and Simple
Mold Change

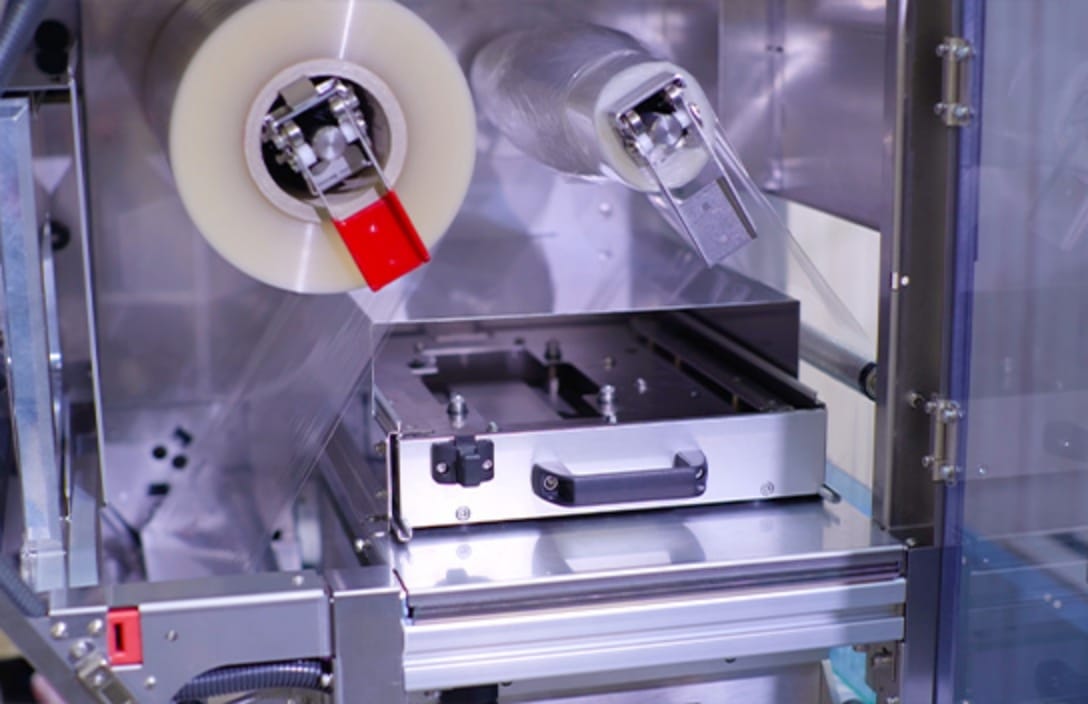

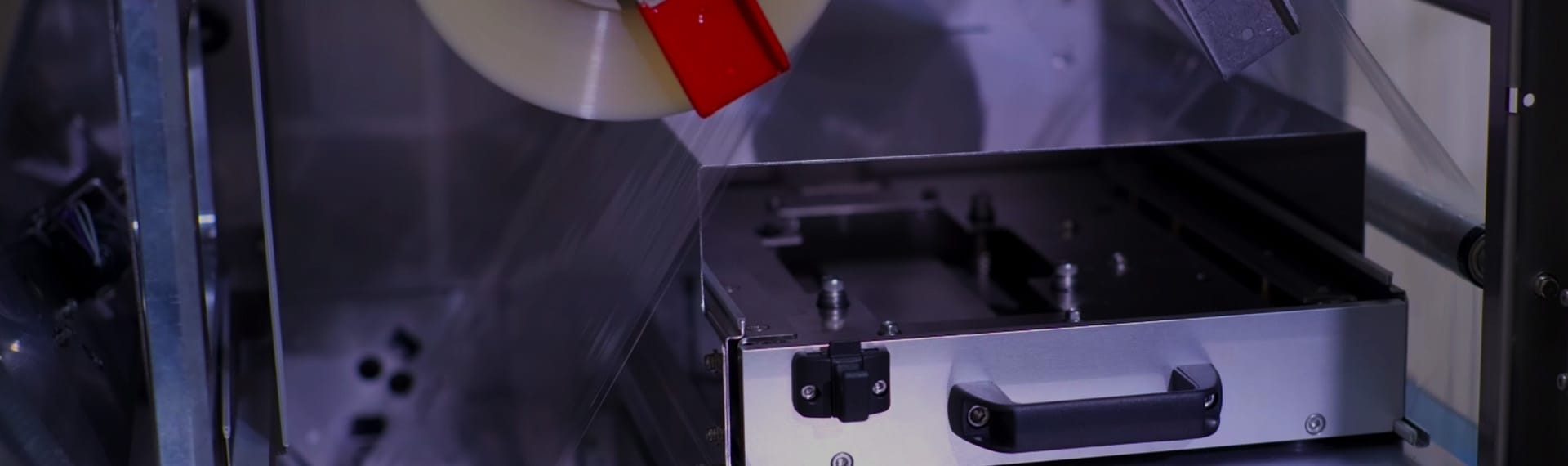

Mold changes are often time-consuming, leading to downtime and a decrease in work efficiency. LX-5600 simplifies this cumbersome process, designed especially for store operations. Its compact and lightweight design allows for quick mold change with minimal effort and no need for tools.

Simple Design for Store Operations

  • Intuitive design that requires no special training for mold change operation
  • Convenient interior mold storage space that enhances operational ease

技术参数

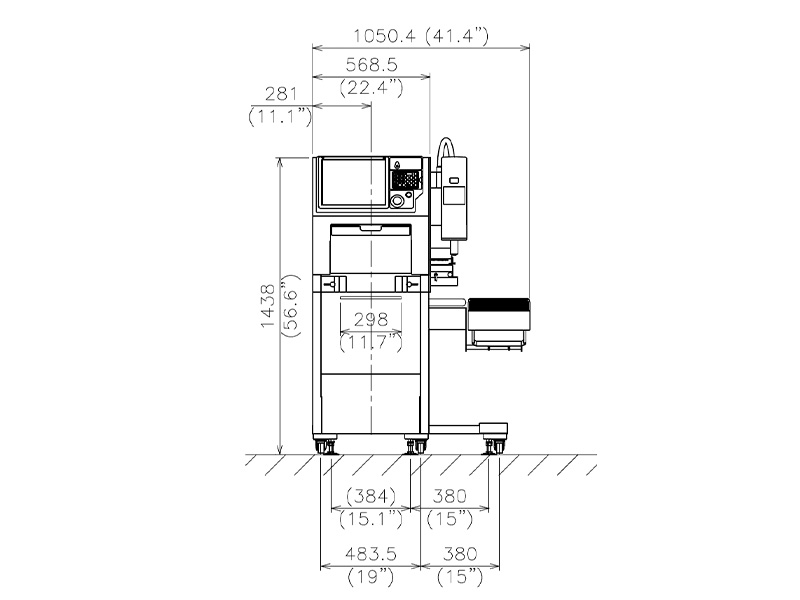

外形尺寸

Packing

Packing speed Top sealing only: Max. 17 packages/min
Gas flushing: 10-15 packages/min *Depends on gas fill time
Package Size #1 W230 x D150 mm (W9.1 x D5.9 inches)
#2 W250 x D180 mm (W9.8 x D7.1 inches)
#3 W300 x D210 mm (W11.8 x D8.2 inches)
Height: 15 – 90 mm (0.6 – 3.5 inches)
*Contact us for custom sizes
Film Width 260-360 mm

Weighing

Interval type Multi interval Single interval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Wrapping capacity 50 g-3 kg 0.11 lb-6.6 lb

Printer and Labeler

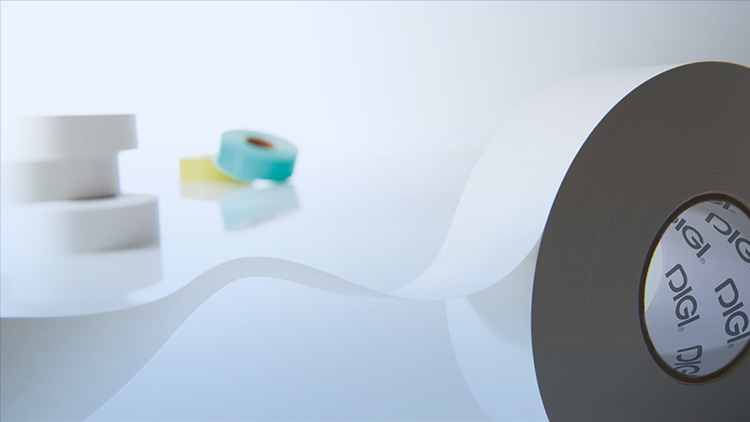

Label Type Linerless Label Die-Cut Label
Main, POP Label W: 44, 59 mm / 1.73, 2.3 inches
H: 28-105 mm / 1.1-4.1 inches
W: 40-80 mm / 1.6-3.1 inches
H: 28-105 mm / 1.1-4.1 inches
BP Label W: 44, 59 mm / 1.73, 2.3 inches
H: 40-105 mm / 1.6-4.1 inches

Operation Console

Display Panel 15 inches TFT color LCD with touch panel
Operation Keys Mechanical keys and touch screen
Memory for Programmable Files 18 GB SD

General

Power source and Consumption AC 200-240 V, 1 phase, 50/60 Hz ; 1.2 kVA
Net Weight Approx. 230 kg
